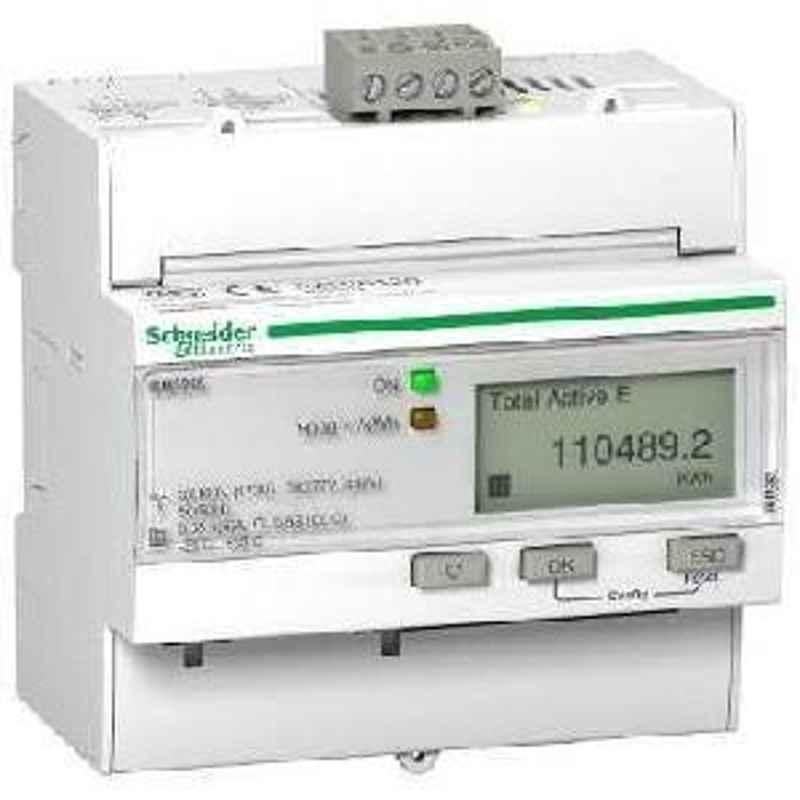

Schneider Electric IEM3250 Energy Meter Upto 63A Max. 99999999.9 kWh

Name: Schneider Electric IEM3250 Energy Meter Upto 63A Max. 99999999.9 kWh
Brand: Schneider Electric
SKU: MSNE5N8D2OPYKL
Price: 16405 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹16,405 (Incl. of all taxes)

₹13,896 ₹2,509 GST

MRP ₹25,000 34% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Supports Multiple Energy Measurement Parameters.
Displays Cumulative Readings Up to 99,999,9999 Kwh.
User-Friendly Interface with Clear Lcd Display.

Product Specifications

Brand	Schneider Electric
Accuracy Class	Active energy : class 0.5S according to IEC 62053-22. Active energy : class 0.5S according to IEC 61557-12. Active energy : class C according to EN 50470-3.
Ambient Temperature	.-25...60 °C (NMI) -25...60 °C (IEC) -25...55 °C (MID)
Analog Input	External CT 1 A or 5 A
Certification	UL EAC (sub-meter) CE - IEC 61010 (safety) CE - IEC 61326-1 (EMC) CULus - ANSI C12.20 (sub-meter) MID - EN 62052 (sub-meter) RCM - NMI M 6-1 (sub-meter) MID - EN 50470-3 (sub-meter) CE - EN 61557-12 (power monitor) CULus - UL 61010 (safety)
Color	White
Communication port protocol	Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none
Communication port support	Screw terminal block : RS485
Connections-terminals	Current circuit : screw terminals 6 mm² Voltage circuit : screw terminals 2.5 mm²
Customer Care Number	1800 103 0011
Depth	69 mm
Digit /Display	LCD display
Frequency	50 Hz 60 Hz
Height (mm)	95 mm
IP Protection	IP20 (body) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529
Local signalling	Power ON : indicator light (green) Accuracy checking : flashing LED (yellow) Overload : alarm Communications are active on the Modbus port (Modbus) : indicator light (yellow)
Maximum value measured	99999999.9 kWh
Model No	IEM3250
Mounting	Clip-on
Mounting support	DIN rail
Operating Altitude	< 2000 m
Pitch	10
Pole	1P + N 3P 3P + N
Pollution Degree	2
Rated Current (A)	Upto 63A
Rated Voltage	100...277 V 173...480 V
Relative Humidity	5...95 % at 50 °C
Sampling Rate	32 samples/cycle
Standard	IEC 61036 IEC 61557-12 IEC 62053-21 IEC 62053-23 IEC 61010 UL 61010-1
Type of Product	Energy Meter
Width (mm)	90 mm
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon, Haryana-122002, India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon, Haryana-122002, India
Dimensions LxWxH	8x10x10 cm
Weight	0.35 kg

Show All Specifications

Product Details

The Schneider Electric IEM3250 Energy Meter is a high-performance device designed to provide precise energy measurement and monitoring for various electrical installations. With a current rating of up to 63A, this energy meter is ideal for both commercial and industrial applications, offering an accurate reading of up to 99,999,999.9 kWh. The IEM3250 is engineered with advanced digital metering technology, ensuring reliable and consistent data accuracy, making it an essential tool for energy management and cost optimization. Its compact design allows for easy installation in standard electrical panels, and its user-friendly interface enables convenient access to real-time energy usage information. Equipped with features such as pulse output and Modbus communication, the meter facilitates seamless integration with energy management systems, allowing for enhanced monitoring and control capabilities. The IEM3250 is built to withstand demanding conditions and meet international standards for safety and reliability, making it suitable for long-term use in diverse environments. By providing clear, accurate energy consumption data, the Schneider Electric IEM3250 Energy Meter supports effective energy usage tracking, helping users make informed decisions to reduce energy waste and optimize power efficiency.
