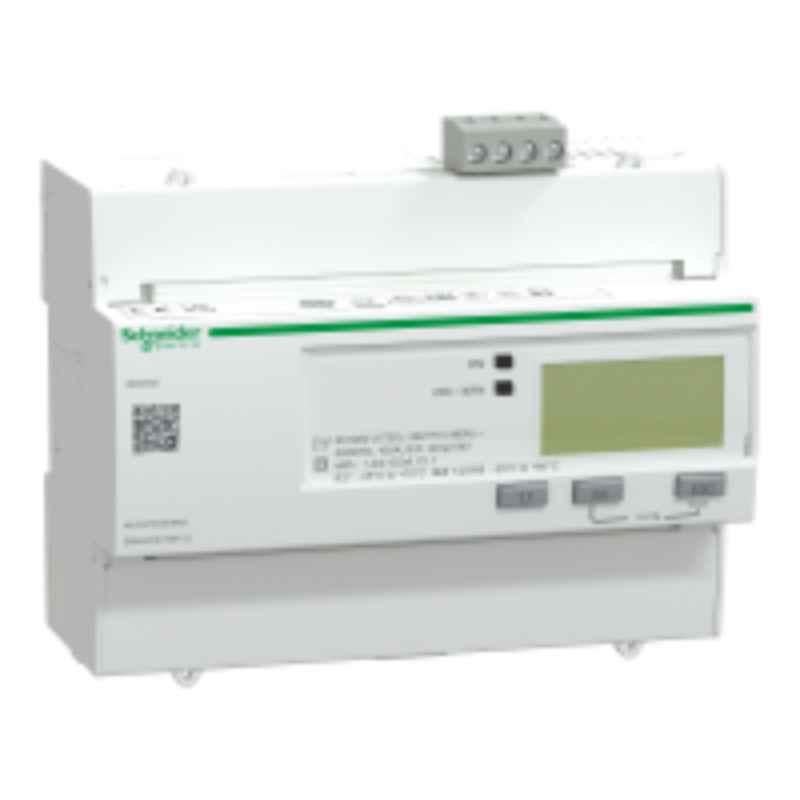

Schneider Electric IEM3350 Energy Meter Upto 125A Max. 99999999.9 kWh

Name: Schneider Electric IEM3350 Energy Meter Upto 125A Max. 99999999.9 kWh
Brand: Schneider Electric
SKU: MSN153VL3ZLYK3
Price: 17031 INR
Availability: OutOfStock

₹17,031 (Incl. of all taxes)

₹14,433 ₹2,598 GST

MRP ₹25,000 31% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Schneider Electric
Accuracy Class	Active energy : class 1 according to IEC 62053-21 . Active energy : class B according to EN 50470-3. Active energy : class 1 according to IEC 61557-12.
Ambient Temperature	.-25...60 °C (NMI) -25...60 °C (IEC) -25...55 °C (MID)
Analog Input	Direct input
Certification	UL EAC (sub-meter) CE - IEC 61010 (safety) CE - IEC 61326-1 (EMC) CULus - ANSI C12.20 (sub-meter) MID - EN 62052 (sub-meter) RCM - NMI M 6-1 (sub-meter) MID - EN 50470-3 (sub-meter) CE - EN 61557-12 (power monitor) CULus - UL 61010 (safety)
Color	White
Communication port protocol	Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none
Communication port support	Screw terminal block : RS485
Connections-terminals	Screw terminals 50 mm²
Customer Care Number	1800 103 0011
Depth	69.3 mm
Digit /Display	LCD display
Frequency	50 Hz 60 Hz
Height (mm)	103.2 mm
IP Protection	IP20 (body) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529
Local signalling	Power ON : indicator light (green) Accuracy checking : flashing LED (yellow) Communications are active on the Modbus port (Modbus) : indicator light (yellow)
Maximum value measured	99999999.9 kWh
Model No	IEM3350
Mounting	Clip-on
Mounting support	DIN rail
Number of input	1 digital 0...5 V/11...40 V 24 V DC
Operating Altitude	< 2000 m
Pitch	14
Pole	1P + N 3P 3P + N
Pollution Degree	2
Rated Current (A)	Upto 125 A
Rated Voltage	100...277 V 173...480 V
Relative Humidity	5...95 % at 50 °C
Sampling Rate	32 samples/cycle
Standard	IEC 61036 IEC 61557-12 IEC 62053-21 IEC 62053-23 IEC 61010 UL 61010-1
Type of Product	Energy Meter
Width (mm)	126 mm
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon, Haryana-122002, India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C, Gurgaon, Haryana-122002, India
Dimensions LxWxH	8x10x10 cm
Weight	0.35 kg

Show All Specifications

Product Details

Schneider Electric IEM3350 Energy Meter Upto 125A Max. 99999999.9 kWh is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Energy Meters. All Schneider Electric IEM3350 Energy Meter Upto 125A Max. 99999999.9 kWh are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric IEM3350 Energy Meter Upto 125A Max. 99999999.9 kWh, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Energy Meters .
