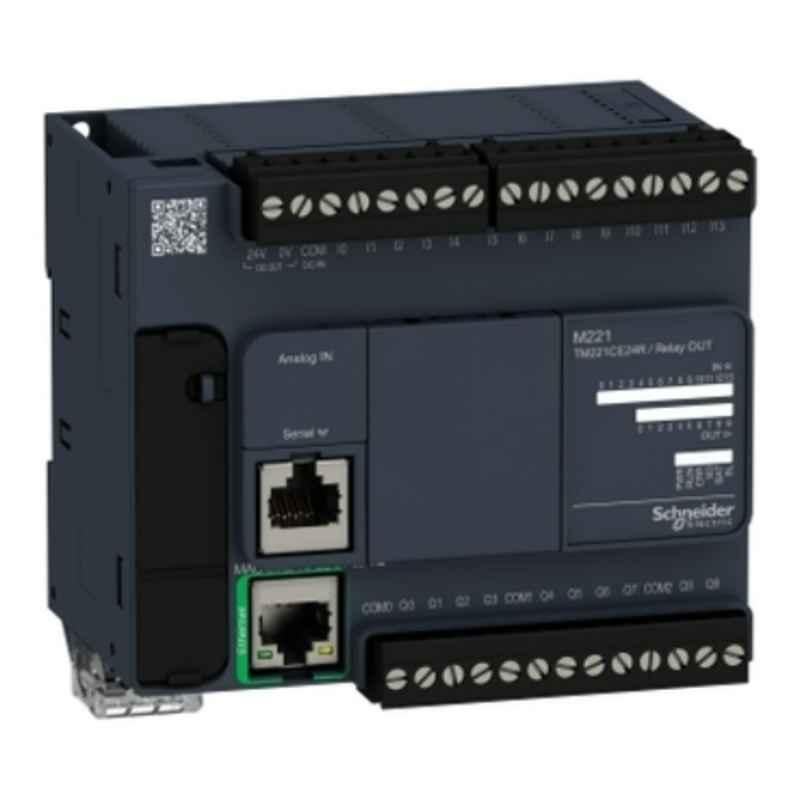

Schneider Electric Modicon M221 24 I/O Relay Ethernet Logic Controller, TM221CE24R

Name: Schneider Electric Modicon M221 24 I/O Relay Ethernet Logic Controller, TM221CE24R
Brand: Schneider Electric
SKU: MSN4K6ZX08N8KQ
Price: 55580 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹55,580 (Incl. of all taxes)

₹47,101 + ₹8,479 GST

MRP ₹63,635 12% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Ethernet Enabled.
24 I-o Relay Logic.
for Automation Tasks.
this Logic Controller Provides 14 Discrete Inputs & 10 Relay Ethernet Outputs with 10bit Input Resolution, Normally Opened Relay Output.
It is a Modicon Logic Controller with a Rated Supply Voltage of 100 to 240 V Ac, an Output Voltage of 5 to 125 V DC, 5 to 250 V AC & an Output Current of 2a with Sink or Source Input Logic.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Protection Class	IP20
Additional Details	LSB Value: 10 mV Discrete I/O Number: 24
Certifications	LR, cULus, ABS, DNV-GL, EAC, RCM, CEUKCA & cULus HazLoc
Inrush Current	40 Amp
Output Current	2 Amp
Part Number	TM221CE24R
Range	Modicon M221
Rated Voltage	100-240 V AC
Relative Humidity	10-95%
Resolution	Analogue Input: 10 bits
Standards	IEC 61131-2, UL 508, CAN/CSA C22.2 No. 213, IACS E10 & ANSI/ISA 12-12-01
Supply Voltage	85-264 V
Common/Generic Name	Logic Controller

Show All Specifications

Product Details

The Schneider Electric Modicon M221 24 I/O Relay Ethernet Logic Controller, TM221CE24R, is a reliable and efficient solution for your electrical needs. With a protection class of IP20 and output current of 2 Amp, this controller is certified by LR, cULus, ABS, DNV-GL, EAC, RCM, CEUKCA & cULus HazLoc. It features 14 discrete inputs and 10 relay Ethernet outputs with 10bit input resolution. The controller has a rated supply voltage of 100 to 240 V AC and an output voltage of 5 to 125 V DC, 5 to 250 V AC. This Modicon logic controller is designed for optimal performance and functionality in a range of applications.
