Is it programmable via software?

Yes, supports EcoStruxure Machine Expert.

Home
Electricals
Electrical Spares & Accessories
Schneider Electric Modicon M221 40 I/O Transistor PNP Ethernet Logic Controller, TM221CE40T

Hover to Zoom

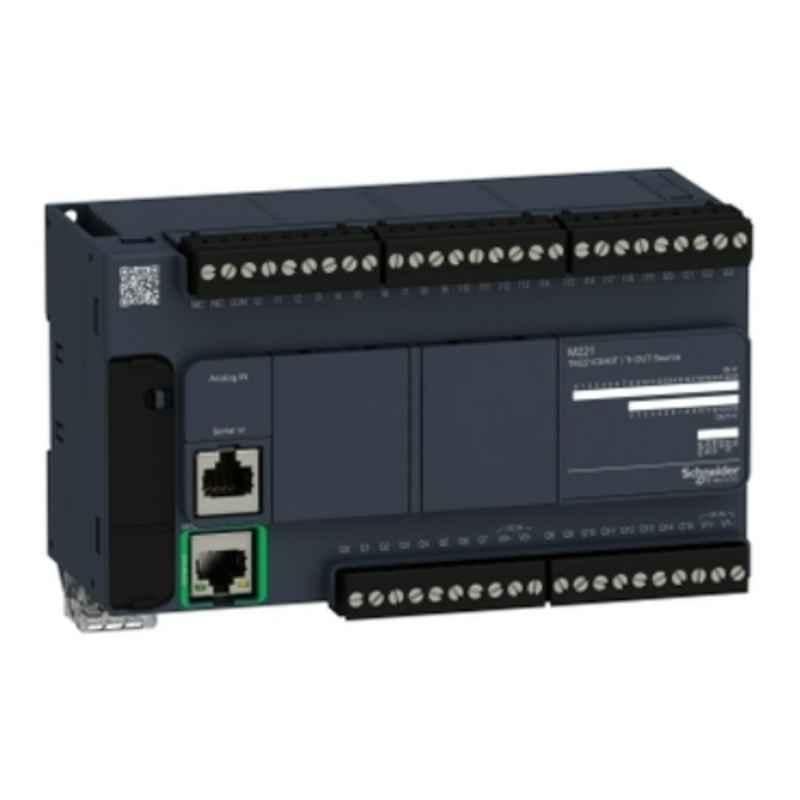

Schneider Electric Modicon M221 40 I/O Transistor PNP Ethernet Logic Controller, TM221CE40T

Name: Schneider Electric Modicon M221 40 I/O Transistor PNP Ethernet Logic Controller, TM221CE40T
Brand: Schneider Electric
SKU: MSN8580Z7WVL92
Price: 82240 INR
Availability: OutOfStock

₹82,240 (Incl. of all taxes)

₹69,694 + ₹12,546 GST

MRP ₹94,157 12% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

It has 40 Logic I/O & It is Supplied with 24 VDC.
It is Supplied with Removable Screw Terminal Blocks for Connecting the I/O, a Removable Screw Terminal Block for Connecting the Power Supply, a Button Cell Backup Battery BR2032 and a Cable for Connecting the Analog Inputs.
M221 Logic Controllers Have Three Types of Integrated Communication Port, Ethernet, RS232/RS 485 Serial Link and USB Mini-B Programming Port, It Enables the Control of Simple Machines, Capacity of M221 Logic Controllers can Be Enhanced with the Modicon TM3 Expansion Module Offer.

Product Specifications

Brand	Schneider Electric
Protection Class	IP20
Additional Details	LSB Value: 10 mV Discrete I/O Number: 40
Certifications	ABS, EAC, RCM, cULus, LR, DNV-GL, CE, UKCA & cULus HazLoc
Inrush Current	35 Amp
Output Current	0.5 Amp
Part Number	TM221CE40T
Range	Modicon M221
Rated Voltage	24 V DC
Relative Humidity	10-95%
Resolution	Analogue Input: 10 bits
Standards	IEC 61131-2, UL 508, CAN/CSA C22.2 No. 213, IACS E10 & ANSI/ISA 12-12-01
Supply Voltage	20.4-28.8 V
Common/Generic Name	Logic Controller

Show All Specifications

Product Details

The Schneider Electric Modicon M221 40 I/O Transistor PNP Ethernet Logic Controller, TM221CE40T, is a top-of-the-line product in the Electrical Spares & Accessories category. With a protection class of IP20, output current of 0.5 Amp, and certifications such as ABS, EAC, RCM, cULus, LR, DNV-GL, CE, UKCA & cULus HazLoc, this controller (part number: TM221CE40T) delivers superior performance. Featuring 40 Logic I/O, 24 VDC supply, removable screw terminal blocks, and various integrated communication ports, this product is ideal for controlling simple machines. Enhance its capacity with Modicon TM3 Expansion Modules for even greater control capabilities.
