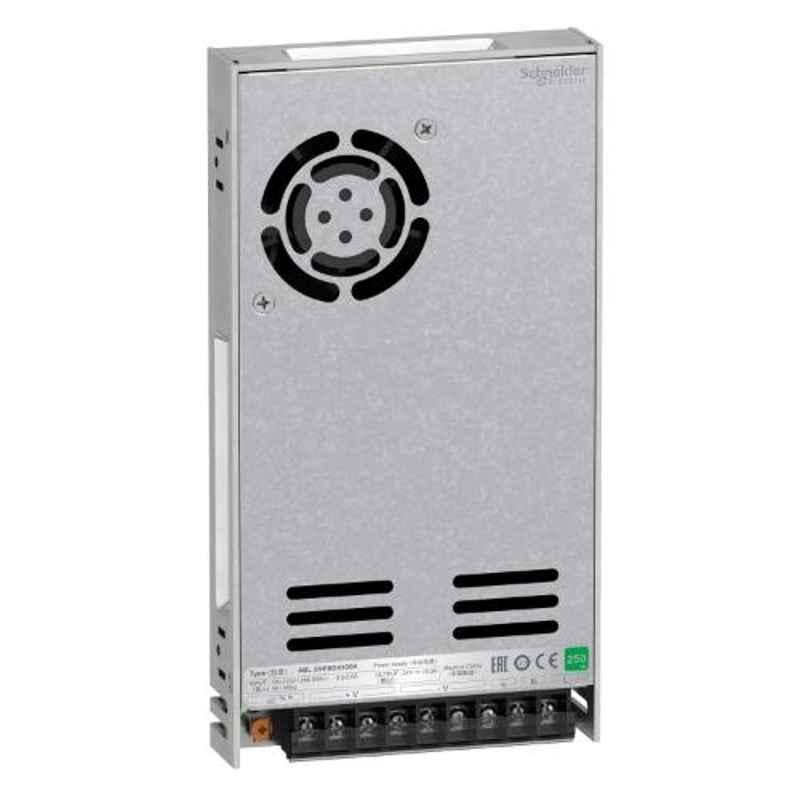

Schneider Electric Phaseo 24V 250W 10.5A Single Phase Easy Power Supply, ABL2REM24100K

Name: Schneider Electric Phaseo 24V 250W 10.5A Single Phase Easy Power Supply, ABL2REM24100K
Brand: Schneider Electric
SKU: MSNR50NG4VM251
Price: 4980 INR
Availability: OutOfStock

₹4,980 (Incl. of all taxes)

₹4,220 ₹760 GST

MRP ₹8,674 42% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Operating Position: Any Position.
Name of Test: Conducted Interference Conforming to EN 61000-6-4 level A.
COS Phi: 0.5, Reach Free of SVHC, Mercury Free & RoHS Exemption Information.

Product Specifications

Brand	Schneider Electric
Ambient Temperature	Operation: -30 to 70 deg C (With Rated Power Derating 5 W per deg C) Storage: -40 to 85 deg C
Certification	CE EAC RoHS IC
Connections	Terminals: For Ground Connection: Screw Type Terminals, Connection Capacity: 1x4 mm² AWG 12
Current	Inrush: 60 Amp at 100-120 V AC 60 Amp at 200-240 V AC
Current Consumption	2.5 Amp at 240 V
Depth	30 mm
Dielectric Strength	2000 V Between Input & Ground
Efficiency	89%
Environmental Characteristic	EMC Conforming to EN 55022 Class B
Frequency	Network: 47-63 Hz
Height	215 mm
Holding Time	>= 12 ms at 115 V
Input Protection Type	Integrated Fuse (Not Interchangeable)
Input Voltage	100-240 V AC
Item Code	ABL2REM24100K
Line and Load Regulation	±1%
Meantime Between Failure	600000 h at 25 deg C
Mounting	Support: DIN Rail with Accessory
Number of Phases	Single Phase
Operating Altitude	5000 m
Output Coupling	Series
Output Current	10.5 Amp
Output Protection Type	Against Overload, Protection Technology: 1.1-1.5xIn Against Short-Circuits, Protection Technology: 1.1-1.5xIn Against Overvoltage, Protection Technology: 1.1-1.5xIn Thermal, Protection Technology: 1.1-1.5xIn
Output Voltage	24 V
Pollution Degree	2
Power	35 W
Power Dissipation	30.9 W
Protection Class	IP20 Conforming to EN/IEC 60950
Rated Power	250 W
Relative Humidity	10-95%
Series	Easy Modicon ABL2
Type	Power Supply Power Supply: Regulated Switch Mode
Vibration Resistance	4 gn (f: 10-500 Hz) Conforming to EN/IEC 61131-2
Warranty	1 Year
Width	115 mm
Country of origin	India
Manufacturer Details	Schneider Electric DLF Building No 10, 9th Floor, Tower C, DLF Cyber City, Gurgaon - 122002
Packer Details	Schneider Electric DLF Building No 10, 9th Floor, Tower C, DLF Cyber City, Gurgaon - 122002
Common/Generic Name	Power Supply
Dimensions LxWxH	2.9x2.9x5.4 cm
Weight	0.3 kg

Show All Specifications

Product Details

Schneider Electric Phaseo 24V 250W 10.5A Single Phase Easy Power Supply, ABL2REM24100K is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Power Supplies & Transformers. All Schneider Electric Phaseo 24V 250W 10.5A Single Phase Easy Power Supply, ABL2REM24100K are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric Phaseo 24V 250W 10.5A Single Phase Easy Power Supply, ABL2REM24100K, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Power Supplies & Transformers .
