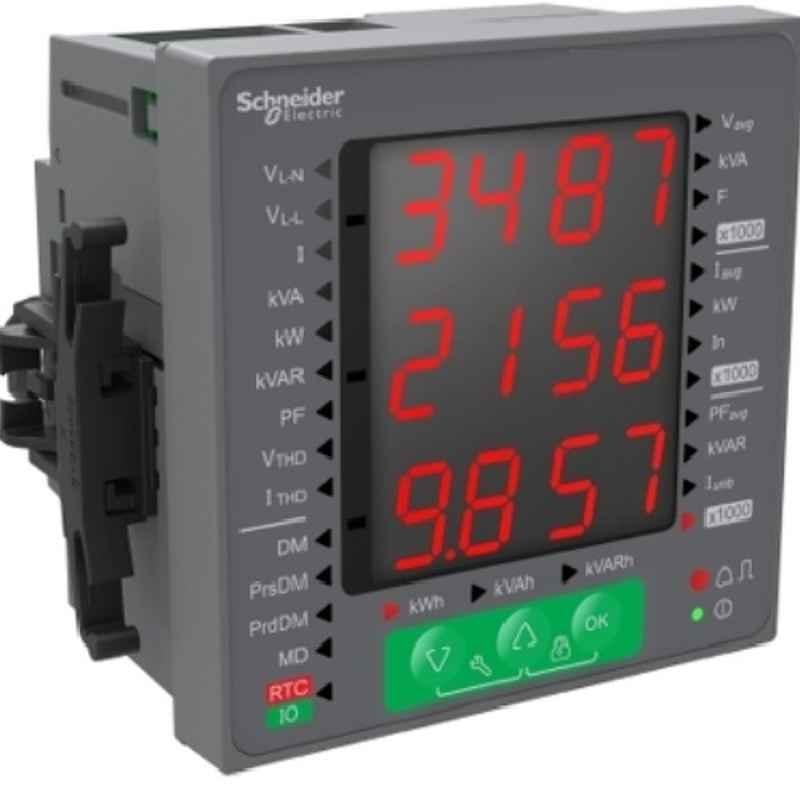

Schneider Electric PM2130 Multifunction PowerAnd Energy meter 5mA-6A

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Schneider Electric
Accuracy Class	Class 0.5S (active energy according to IEC 62053-22) Class 1 (reactive energy according to IEC 62053-24) Class 5 (harmonic distorsion (I THD & U THD)
Ambient Temperature	-10...60 °C
Analogue input type	Current (impedance 0.3 mOhm) Voltage (impedance 5 MOhm)
Applications	Power monitoring Sub billing
Certification	CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 EAC CULus conforming to CSA C22.2 No 61010-1 RCM C-Tick C-Tick
Communication port protocol	Modbus RTU 2 wires, : 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, even/odd or none, insulation: 2500 V
Communication port support	Screw terminal block : RS485
Current	1 A, 5 A
Depth (mm)	76.09 mm total 61.64 mm embedded
Dimensions	Cut-out dimensions: 90 x 90 mm
Display	7 segments LED Red
Ethernet	Enable/disable serial ports
Frequency	50 Hz, 60 Hz
Frequency Measurement	45...65 Hz
Height	96 mm
IP Protection	IP30 (body) conforming to IEC 60529 IP51 (front) conforming to IEC 60529
Material	Polycarbonate
Measurement	Measurement accuracy: +/- 0.5 % active energy +/- 0.5 % active power +/- 0.5 % apparent power +/- 0.05 % frequency +/- 1 % reactive energy +/- 0.5 % current +/- 0.5 % voltage +/- 0.01 power factor
Measurement Current	5 mA...6 A
Model No	PM2130
Mounting position	Vertical
Mounting support	Framework
Operating Altitude	<= 2000 m
Pollution Degree	2
Power Consumption	3.3 W power lines (AC) < 2 W power lines (DC)
Power quality Analysis	Up to the 31st harmonic Total harmonic distortion
Rate	Sampling rate: 64 samples/cycle
Relative Humidity	5...95 % 50 °C
Supply Voltage	44...277 V AC +/- 10 % (45...65 Hz) 44...277 V DC +/- 10 %
Type	Multifunction Power and Energy meter
Weight	300 g
Width (mm)	96 mm
information displayed	Voltage Current Frequency Energy consumption Harmonic distortion Demand current past value Demand current present value Demand power past value Demand power present value Power factor Active power Apparent power Reactive power Unbalanced in %
measurement Voltage	35...480 V AC 50/60 Hz between phases 20...277 V AC 50/60 Hz between phase and neutral <= 999 kV AC 50/60 Hz with external VT
mounting mode	Clip-on
Weight	300 g

Show All Specifications

Product Details

Schneider Electric PM2130 Multifunction PowerAnd Energy meter 5mA-6A is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Energy Meters. All Schneider Electric PM2130 Multifunction PowerAnd Energy meter 5mA-6A are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric PM2130 Multifunction PowerAnd Energy meter 5mA-6A, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Energy Meters .
