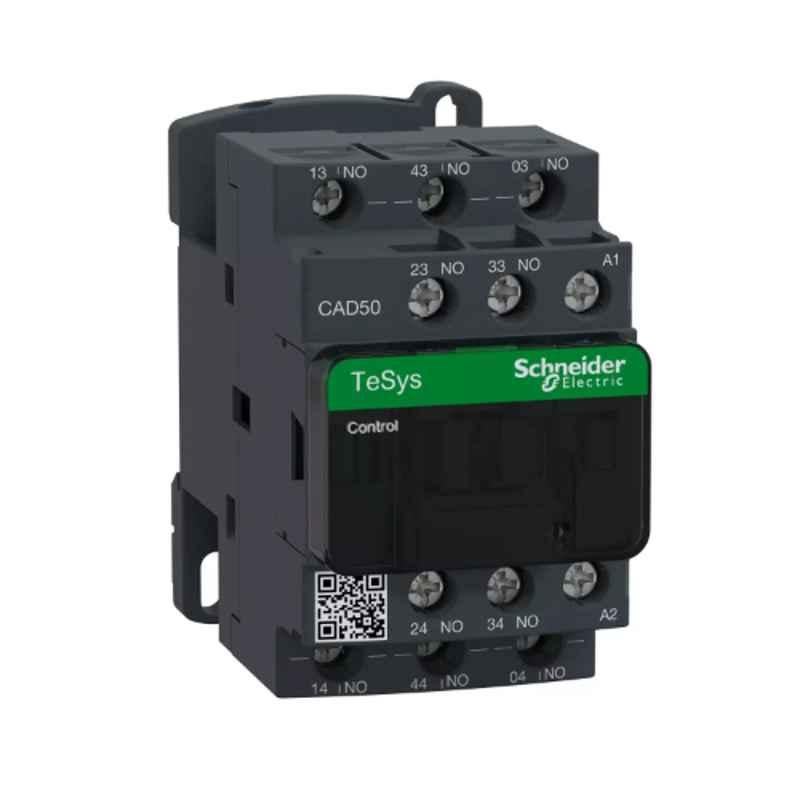

Schneider Electric TeSys D CAD50FL Control Relay 5 NO 690V - 110V DC

Name: Schneider Electric TeSys D CAD50FL Control Relay 5 NO 690V - 110V DC
Brand: Schneider Electric
SKU: MSN4K6ZM0ED8KQ
Price: 3237 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹3,237 (Incl. of all taxes)

₹2,744 ₹493 GST

AVAILABLE ON REQUEST

About This Product

Key Features

DC 110V Coil.
5 No Contacts.
Handles 690v Loads.

Product Specifications

Brand	Schneider Electric
Series	TeSys D
Additional Details	Connection Terminal: Screw clamp terminals 1 Cables 1-4 mm² flexible without cable end, Screw clamp terminals 2 Cables 1-4 mm² flexible without cable end, Screw clamp terminals 1 Cables 1-4 mm² flexible with cable end, Screw clamp terminals 2 Cables 1-2.5 mm² flexible with cable end, Screw clamp terminals 1 Cables 1-4 mm² solid without cable end, Screw clamp terminals 2 Cables 1-4 mm² solid without cable end Fuse Rating: 10 A gG Conforming to IEC 60947-5-1 Operating Time: 65-88 ms coil energisation & NO closing, 14-25 ms coil de-energisation & NO opening Switching Current: 5 mA Tightening Torque: 1.2 Nm-on screw clamp terminals-with screwdriver Philips No 2, 1.2 Nm-on screw clamp terminals-with screwdriver flat 6 mm
Air temperature	-60-80 deg C
Application	Control circuit
Depth	93 mm
Height	77 mm
Mechanical Durability	30 M Cycles
Minimum Switching Voltage	17 V
Model	CAD50FL
Mounting type	DIN Rail & Plate
Notes	Image for reference purposes only
Number of Poles	5 NO
Operating Altitude	0-3000 m
Operating Rate	180 cyc/mn
Protection Class	IP2X
Rated Insulation Voltage	600 V UL certified, 600 V CSA certified, 690 V conforming to IEC 60947-5-1
Rated Making Capacity	140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
Standards	EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys CAD
Timer	40 ms
Voltage	690 V AC 25-400 Hz
Weight	580 g
Width	45 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Relay
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys D CAD50FL Control Relay is the perfect solution for controlling electrical circuits in various industrial applications. As part of the Control Relays category, this relay offers exceptional performance, reliability, and functionality. With a brand name like Schneider Electric, you can trust that this product has been designed and manufactured to the highest standards.

One of the standout features of this Control Relay is its ability to withstand extreme temperatures ranging from -60 to 80 degrees Celsius. This makes it suitable for use in harsh environments where temperature fluctuations are common.

With 5 normally open (NO) poles, this relay allows for the control of multiple circuits simultaneously. It also boasts a rated making capacity of 140 A AC conforming to IEC 60947-5-1 and 250 A DC conforming to IEC 60947-5-1, making it capable of handling high current loads.

Despite its robust capabilities, the TeSys D CAD50FL Control Relay is surprisingly lightweight, weighing in at just 580 g. This makes installation and maintenance hassle-free.

The relay can be mounted effortlessly using the DIN Rail & Plate mounting type, ensuring a secure and stable placement. Please note that the image provided is for reference purposes only and may differ slightly from the actual product.

When it comes to connection terminals, this Control Relay offers versatility. It is equipped with screw clamp terminals that can accommodate various cable types and sizes. Whether you have 1-4 mm² flexible cables with or without cable ends or 1-2.5 mm² flexible cables with cable ends, this relay can handle them all. It also supports 1-4 mm² solid cables without cable ends.

In conclusion, the Schneider Electric TeSys D CAD50FL Control Relay is a reliable and high-performing solution for controlling electrical circuits in industrial applications. With its temperature resistance, multiple poles, high making capacity, and flexible connection terminals, it is an excellent choice for any control relay needs.
