Schneider Electric TeSys Deca LC1D25E7 3 Pole Contactor 3 NO

Hover to Zoom

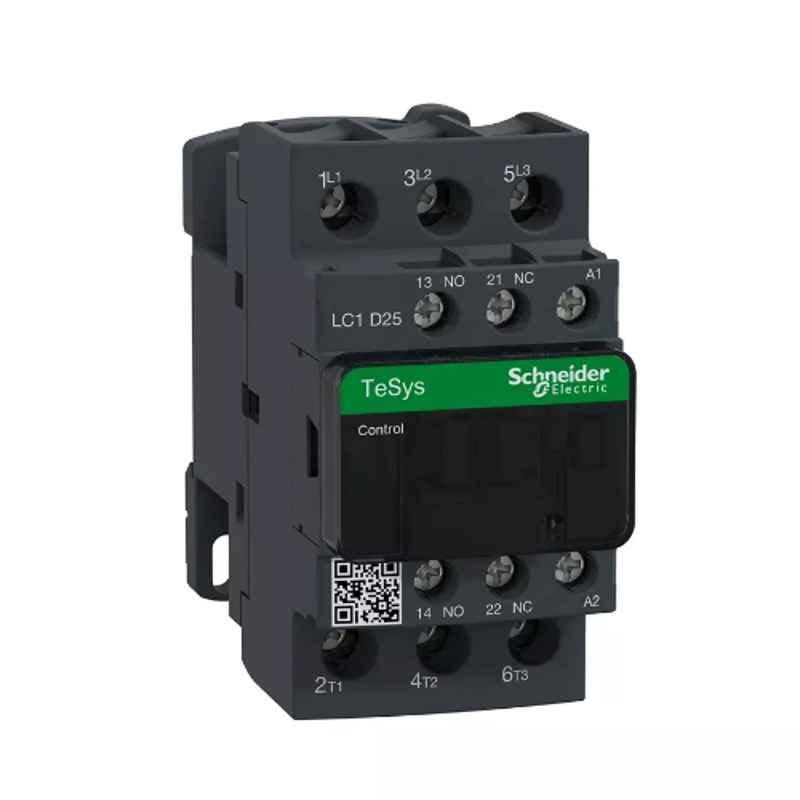

Schneider Electric TeSys Deca LC1D25E7 3 Pole Contactor 3 NO

Name: Schneider Electric TeSys Deca LC1D25E7 3 Pole Contactor 3 NO
Brand: Schneider Electric
SKU: MSNNKQG8Q1VZ9X
Price: 3118 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹3,118 (Incl. of all taxes)

₹2,643 ₹475 GST

AVAILABLE ON REQUEST

About This Product

Key Features

25a Current Rating at Up to 440V Ac, Suitable for Motor Control Applications.
48v AC Coil Voltage with 3 Normally Open (no) Contacts for Versatile Switching.
Compact Design (45mm Width) Allows for DIN Rail or Screw Mounting, Saving Panel Space.

Product Specifications

Brand	Schneider Electric
Additional Details	Pole Contact Composition: 3 NO
Control Circuit Voltage	48 V AC 50/60 Hz
Current	25 Amp (at <60 deg C) at <= 440 V AC AC-3 for power circuit 40 Amp (at <60 deg C) at <= 440 V AC AC-1 for power circuit 25 Amp (at <60 deg C) at <= 440 V AC AC-3e for power circuit
Model	LC1D25E7
Motor Power	5.5 kW at 220-230 V AC 50/60 Hz (AC-3) 11 kW at 380-400 V AC 50/60 Hz (AC-3) 11 kW at 415-440 V AC 50/60 Hz (AC-3) 15 kW at 500 V AC 50/60 Hz (AC-3) 15 kW at 660-690 V AC 50/60 Hz (AC-3) 5.5 kW at 400 V AC 50/60 Hz (AC-4) 5.5 kW at 220-230 V AC 50/60 Hz (AC-3e) 11 kW at 380-400 V AC 50/60 Hz (AC-3e) 11 kW at 415-440 V AC 50/60 Hz (AC-3e) 15 kW at 500 V AC 50/60 Hz (AC-3e) 15 kW at 660-690 V AC 50/60 Hz (AC-3e)
Mounting type	DIN Rail & Plate
Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	3 Pole
Power	3.2 W
Protection Class	IP20
Series	TeSys Deca
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 IEC 60335-1
Voltage	690 V AC 25-400 Hz 300 V DC
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys Deca LC1D25E7 3 Pole Contactor 3 NO is a reliable and efficient solution for controlling electrical circuits in a variety of applications. This contactor, part of the Relays & Contactors category, is designed with three poles and a DIN Rail & Plate mounting type for easy installation.

Featuring one normally open (NO) and one normally closed (NC) contact, this contactor provides flexible control options. Please note that the image is for reference purposes only.

With its 3 NO pole contact composition, the LC1D25E7 model can handle different motor power requirements. It can handle a motor power of 5.5 kW at 220-230 V AC 50/60 Hz (AC-3), 11 kW at 380-400 V AC 50/60 Hz (AC-3), 11 kW at 415-440 V AC 50/60 Hz (AC-3), 15 kW at 500 V AC 50/60 Hz (AC-3), 15 kW at 660-690 V AC 50/60 Hz (AC-3), 5.5 kW at 400 V AC 50/60 Hz (AC-4), 5.5 kW at 220-230 V AC 50/60 Hz (AC-3e), 11 kW at 380-400 V AC 50/60 Hz (AC-3e), 11 kW at 415-440 V AC 50/60 Hz (AC-3e), 15 kW at 500 V AC 50/60 Hz (AC-3e), and 15 kW at 660-690 V AC 50/60 Hz (AC-3e).

Choose the trusted brand Schneider Electric for your contactor needs and ensure reliable and efficient control of your electrical circuits.
