Schneider Electric TeSys Deca LC1D80AB7 3P AC-3/AC-3e 66A, 24VAC Coil Contactor

Hover to Zoom

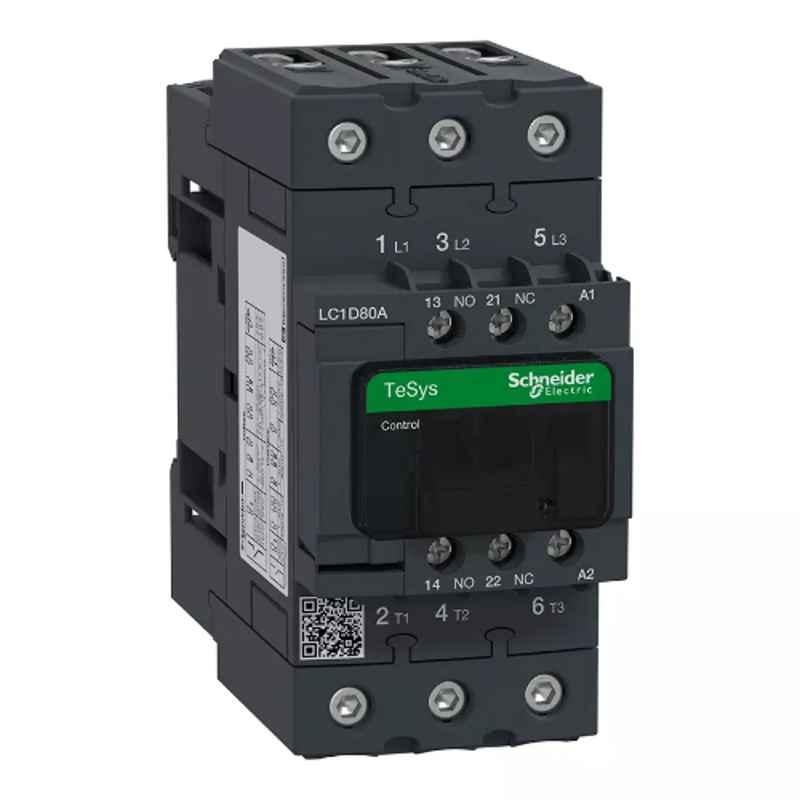

Schneider Electric TeSys Deca LC1D80AB7 3P AC-3/AC-3e 66A, 24VAC Coil Contactor

Name: Schneider Electric TeSys Deca LC1D80AB7 3P AC-3/AC-3e 66A, 24VAC Coil Contactor
Brand: Schneider Electric
SKU: MSNO5WN1DWER51
Price: 19489 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹19,489 (Incl. of all taxes)

₹16,516 + ₹2,973 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Handles Up to 66a for Demanding Loads.
Compact Design with High Mechanical Durability.
Fast Switching with Quick Opening & Closing Times.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 0.7 MCycles 80 A AC-1 at Ue <= 440 V, 1 MCycles 66 A AC-3 at Ue <= 440 V, 1 MCycles 66 A AC-3e at Ue <= 440 V Average Impedance: 1.5 mOhm Ith 80 A 50 Hz Coil Technology: Without built-in suppressor module Compatibility Code: LC1D Connection Terminal: Control circuit screw clamp terminals 2 1-2.5 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible with cable end, Power circuit EverLink BTR screw connectors 1 1-35 mm²-cable stiffness flexible with cable end, Power circuit EverLink BTR screw connectors 2 1-25 mm²-cable stiffness flexible with cable end, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness solid, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness solid, Power circuit EverLink BTR screw connectors 1 1-35 mm²-cable stiffness solid, Power circuit EverLink BTR screw connectors 2 1-25 mm²-cable stiffness solid, Control circuit screw clamp terminals 1 1-4 mm²-cable stiffness flexible, Control circuit screw clamp terminals 2 1-4 mm²-cable stiffness flexible, Power circuit EverLink BTR screw connectors 1 1-35 mm²-cable stiffness flexible, Power circuit EverLink BTR screw connectors 2 1-25 mm²-cable stiffness flexible Fuse Rating: 10 A gG for signalling circuit Conforming to IEC 60947-5-1, 125 A gG at 690 V coordination type 1 for power circuit, 125 A gG at 690 V coordination type 2 for power circuit Heat Dissipation: 4-5 W at 50/60 Hz Operating Time: 4-19 ms opening, 12-26 ms closing Pole Contact Composition: 3 NO Power Dissipation Per Pole: 9.6 W AC-1, 6.3 W AC-3, 6.3 W AC-3e Switching Current: 5 mA for signalling circuit Tightening Torque: Control circuit 1.7 Nm-on screw clamp terminals-with screwdriver flat 6 mm, Control circuit 1.7 Nm-on screw clamp terminals-with screwdriver Philips No 2, Power circuit 8 Nm-on EverLink BTR screw connectors-cable 25-35 mm² hexagonal screw head 4 mm, Power circuit 5 Nm-on EverLink BTR screw connectors-cable 1-25 mm² hexagonal screw head 4 mm, Control circuit 1.7 Nm-on screw clamp terminals-with screwdriver pozidriv No 2, Power circuit 2.5 Nm-on screw clamp terminals-with screwdriver pozidriv No 2, Voltage Category: III
Application	Motor control, Resistive load
Breaking Capacity	1000 A at 440 V for power circuit conforming to IEC 60947
Depth	120 mm
Height	122 mm
Mechanical Durability	6 M Cycles
Minimum Switching Voltage	17 V for signalling circuit
Model	LC1D80AB7
Motor Power	5 hp at 115 V AC 60 Hz for 1 phase motors, 10 hp at 230/240 V AC 60 Hz for 1 phase motors, 20 hp at 200/208 V AC 60 Hz for 3 phases motors, 20 hp at 230/240 V AC 60 Hz for 3 phases motors, 40 hp at 460/480 V AC 60 Hz for 3 phases motors, 50 hp at 575/600 V AC 60 Hz for 3 phases motors 22 kW at 220-230 V AC 50/60 Hz (AC-3), 37 kW at 380-400 V AC 50/60 Hz (AC-3), 37 kW at 415 V AC 50/60 Hz (AC-3), 37 kW at 440 V AC 50/60 Hz (AC-3), 37 kW at 500 V AC 50/60 Hz (AC-3), 37 kW at 660-690 V AC 50/60 Hz (AC-3), 22 kW at 220-230 V AC 50/60 Hz (AC-3e), 37 kW at 380-400 V AC 50/60 Hz (AC-3e), 37 kW at 415 V AC 50/60 Hz (AC-3e), 37 kW at 440 V AC 50/60 Hz (AC-3e), 37 kW at 500 V AC 50/60 Hz (AC-3e), 37 kW at 660-690 V AC 50/60 Hz (AC-3e)
Mounting type	DIN Rail & Plate
Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	3 Pole
Operating Altitude	0-3000 m
Operating Rate	3600 cyc/h 60 deg C
Protection Class	IP20
Rated Insulation Voltage	Signalling circuit 690 V conforming to IEC 60947-1, Power circuit 690 V conforming to IEC 60947-4-1
Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 1000 A at 440 V AC for power circuit conforming to IEC 60947
Series	TeSys Deca
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC 60335-1
Suitable For	Product Range Compatibility: TeSys Deca
Voltage	690 V AC 25-400 Hz, 300 V DC
Weight	860 g
Width	55 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g
