Schneider Electric TeSys Deca LC1D80AN7 3 Pole 66A AC-3 415VAC 50/60Hz Contactor

Name: Schneider Electric TeSys Deca LC1D80AN7 3 Pole 66A AC-3 415VAC 50/60Hz Contactor
Brand: Schneider Electric
SKU: MSN2KM1RJLX89V
Price: 19489 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹19,489 (Incl. of all taxes)

₹16,516 ₹2,973 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Sturdy Contacts for Long Life.
Compatible with 415 V AC Systems.
Efficient Motor Control Solution.

Product Specifications

Brand	Schneider Electric
Additional Details	Electrical Durability: 0.7 MCycles 80 A AC-1 at Ue <= 440 V, 1 MCycles 66 A AC-3 at Ue <= 440 V, 1 MCycles 66 A AC-3e at Ue <= 440 V Average Impedance: 1.5 mOhm Ith 80 A 50 Hz Coil Technology: Without built-in suppressor module Compatibility Code: LC1D Fuse Rating: 10 A gG for signalling circuit Conforming to IEC 60947-5-1, 125 A gG at 690 V coordination type 1 for power circuit, 125 A gG at 690 V coordination type 2 for power circuit Heat Dissipation: 4-5 W at 50/60 Hz Operating Time: 4-19 ms opening, 12-26 ms closing Pole Contact Composition: 3 NO Power Dissipation Per Pole: 9.6 W AC-1, 6.3 W AC-3, 6.3 W AC-3e Switching Current: 5 mA for signalling circuit Tightening Torque: Control circuit 1.7 Nm-on screw clamp terminals-with screwdriver flat 6 mm, Control circuit 1.7 Nm-on screw clamp terminals-with screwdriver Philips No 2, Power circuit 8 Nm-on EverLink BTR screw connectors-cable 25-35 mm² hexagonal screw head 4 mm, Power circuit 5 Nm-on EverLink BTR screw connectors-cable 1-25 mm² hexagonal screw head 4 mm, Control circuit 1.7 Nm-on screw clamp terminals-with screwdriver pozidriv No 2, Power circuit 2.5 Nm-on screw clamp terminals-with screwdriver pozidriv No 2 Voltage Category: III
Application	Motor control, Resistive load
Breaking Capacity	1000 A at 440 V for power circuit conforming to IEC 60947
Depth	120 mm
Height	122 mm
Insulation Resistance	10 Mohm
Mechanical Durability	6 M Cycles
Minimum Switching Voltage	17 V for signalling circuit
Model	LC1D80AN7
Motor Power	5 hp at 115 V AC 60 Hz for 1 phase motors, 10 hp at 230/240 V AC 60 Hz for 1 phase motors, 20 hp at 200/208 V AC 60 Hz for 3 phases motors, 20 hp at 230/240 V AC 60 Hz for 3 phases motors, 40 hp at 460/480 V AC 60 Hz for 3 phases motors, 50 hp at 575/600 V AC 60 Hz for 3 phases motors 22 kW at 220-230 V AC 50/60 Hz (AC-3), 37 kW at 380-400 V AC 50/60 Hz (AC-3), 37 kW at 415 V AC 50/60 Hz (AC-3), 37 kW at 440 V AC 50/60 Hz (AC-3), 37 kW at 500 V AC 50/60 Hz (AC-3), 37 kW at 660-690 V AC 50/60 Hz (AC-3), 22 kW at 220-230 V AC 50/60 Hz (AC-3e), 37 kW at 380-400 V AC 50/60 Hz (AC-3e), 37 kW at 415 V AC 50/60 Hz (AC-3e), 37 kW at 440 V AC 50/60 Hz (AC-3e), 37 kW at 500 V AC 50/60 Hz (AC-3e), 37 kW at 660-690 V AC 50/60 Hz (AC-3e)
Mounting type	DIN Rail & Plate

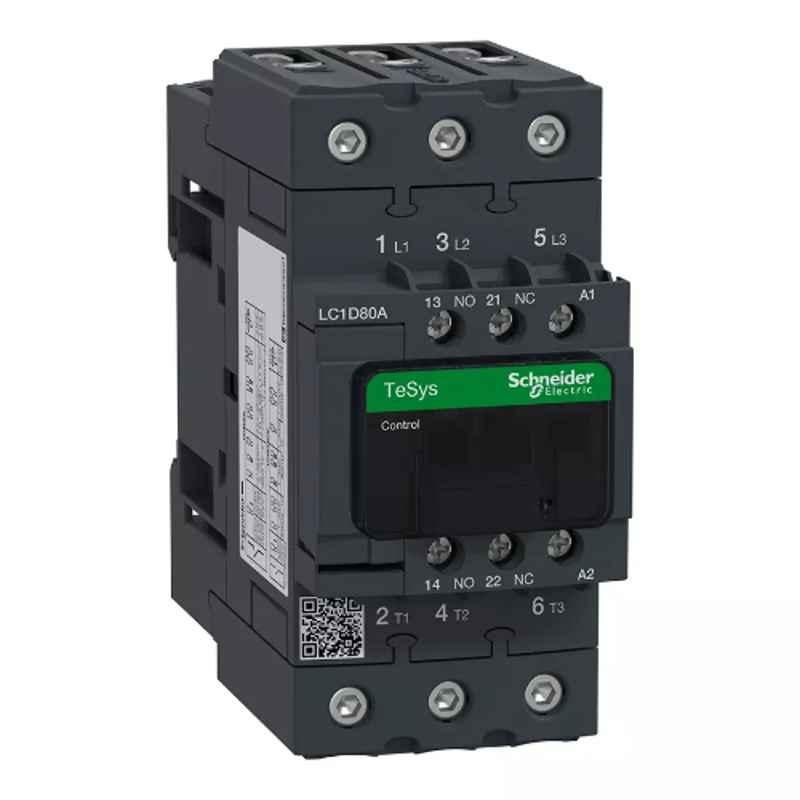

Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	3 Pole
Operating Altitude	0-3000 m
Operating Rate	3600 cyc/h 60 deg C
Protection Class	IP20
Rated Insulation Voltage	690 V conforming to IEC 60947-1
Series	TeSys Deca
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC 60335-1
Suitable For	Product Range Compatibility: TeSys Deca
Voltage	690 V AC 25-400 Hz, 300 V DC
Weight	0.86 kg
Width	55 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

Introducing the Schneider Electric TeSys Deca LC1D80AN7 Contactor, a reliable and efficient solution for all your electrical control needs. This 3-pole contactor is designed to provide excellent performance, ensuring a smooth and uninterrupted operation. With a current rating of 66A AC-3 and a voltage rating of 415VAC, this contactor is suitable for a wide range of applications.

As part of the Relays & Contactors category, this Schneider Electric product is synonymous with quality and reliability. With its robust construction and advanced features, it guarantees optimal performance and longevity. The brand name, Schneider Electric, is renowned in the industry for its commitment to innovation and customer satisfaction.

The TeSys Deca LC1D80AN7 contactor is easy to install with its versatile mounting options, including DIN Rail and Plate. The contactor is equipped with 1 normally open (NO) and 1 normally closed (NC) contacts, providing flexibility in your electrical control system.

With its impressive breaking capacity of 1000A at 440V, this contactor ensures safe and efficient operation, conforming to the IEC 60947 standards. It delivers outstanding electrical durability, with 0.7 million cycles at 80A AC-1 and 1 million cycles at 66A AC-3.

Please note that the image provided is for reference purposes only, allowing you to visualize the product accurately. For additional information and peace of mind, this contactor comes with a weight of 0.86kg, making it lightweight and easy to handle.

In summary, the Schneider Electric TeSys Deca LC1D80AN7 Contactor is a high-quality and reliable choice for all your electrical control needs. With its 3 poles, DIN Rail and Plate mounting types, and exceptional performance, it guarantees your satisfaction. Choose Schneider Electric for a trusted and efficient solution in the Relays & Contactors category.
