Can it be mounted directly on contactors?

Yes, it attaches easily to the side of the main contactor.

Home
Electricals
Relays & Contactors
Schneider Electric TeSys Giga LAG8N113 L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block

Hover to Zoom

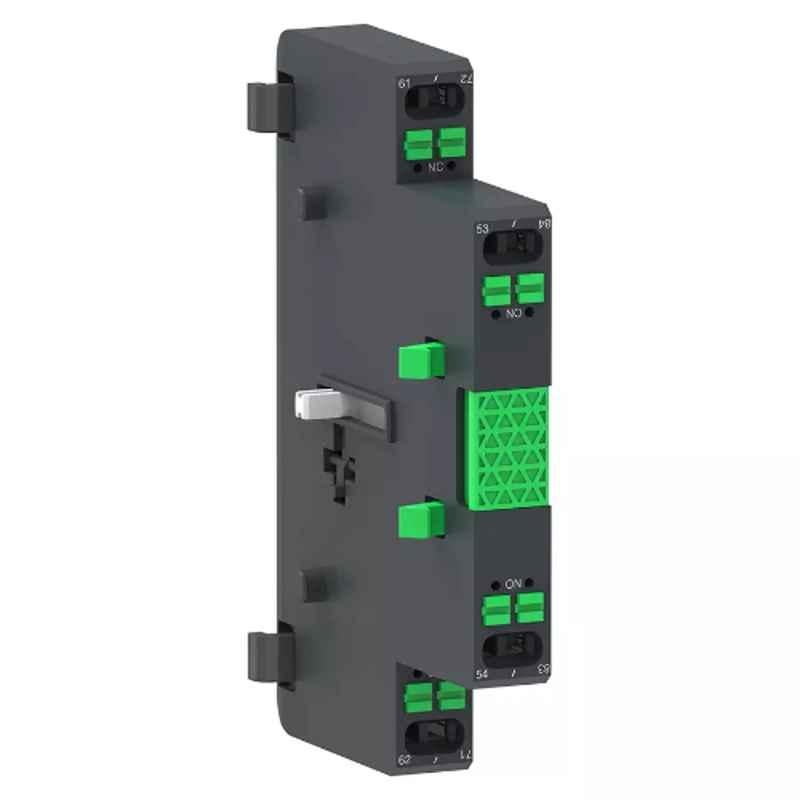

Schneider Electric TeSys Giga LAG8N113 L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block

Name: Schneider Electric TeSys Giga LAG8N113 L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block
Brand: Schneider Electric
SKU: MSNM9XYV62VMKJ
Price: 1322 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹1,322 (Incl. of all taxes)

₹1,121 + ₹201 GST

AVAILABLE ON REQUEST

Moglix Insights

Schneider Electric is one of the top brand in relays & contactors, preferred by 21% of the users

9% of the users prefer relays & contactors in ₹1000-2000 price range

About This Product

Key Features

1NO +1NC Auxiliary Contact Block Enables Both Feedback & Control Circuits.
Push-in Terminal Design Simplifies Wiring with Secure, Tool-free Connections.
Compact Te Sys Giga Form Factor Allows Easy Integration in Motor Control Setups.

Product Specifications

Brand	Schneider Electric
Additional Details	Connection Terminal: Screw Clamp Terminals: 0.75-2.5 mm² Solid Stranded without Cable End & Screw Clamp Terminals: 0.75-2.5 mm² Flexible With Cable End Switching Current: 1 mA
Air temperature	-60-80 deg C
Depth	84.8 mm
Height	55.8 mm
Insulation Resistance	10 Mohm
Mechanical Durability	8 M Cycles
Model	LAG8N113
Mounting type	Side
Notes	Image for reference purposes only
Number of Contacts	1 NO & 1 NC
Operating Altitude	3000 m
Protection Class	IP20
Rated Insulation Voltage	500 V conforming to IEC 60947-5-1, 500 V - certifications CSA, 500 V - certifications UL
Rated Making Capacity	140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
Series	TeSys Giga
Standards	EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB 14048.5
Suitable For	Product Range Compatibility: TeSys G
Voltage	500 V AC 25-400 Hz
Weight	50 g
Width	15.4 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys Giga LAG8N113 L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block is an essential component in the Relays & Contactors category. Manufactured by Schneider Electric, a renowned brand in the electrical industry, this contact block is designed to operate in extreme air temperatures ranging from -60 to 80 degrees Celsius.

With a rated making capacity of 140 A AC conforming to IEC 60947-5-1 and 250 A DC conforming to IEC 60947-5-1, this contact block ensures reliable and efficient performance. Despite its robust capabilities, it boasts a lightweight design, weighing only 50 g.

The mounting type for this contact block is side-mounted, allowing for easy installation and integration into various electrical systems. It features one normally open (NO) contact and one normally closed (NC) contact, providing versatility in controlling electrical circuits.

Please note that the image provided is for reference purposes only and may differ from the actual product. For additional details, the connection terminal options include screw clamp terminals for 0.75-2.5 mm² solid stranded wires without cable ends and screw clamp terminals for 0.75-2.5 mm² flexible wires with cable ends.

In summary, the Schneider Electric TeSys Giga LAG8N113 L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block is a reliable and high-performance component designed to handle extreme temperatures. With its lightweight design and easy installation, it is an ideal choice for various industrial and electrical applications.
