Schneider Electric TeSys Giga LAG8N113P L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block

Hover to Zoom

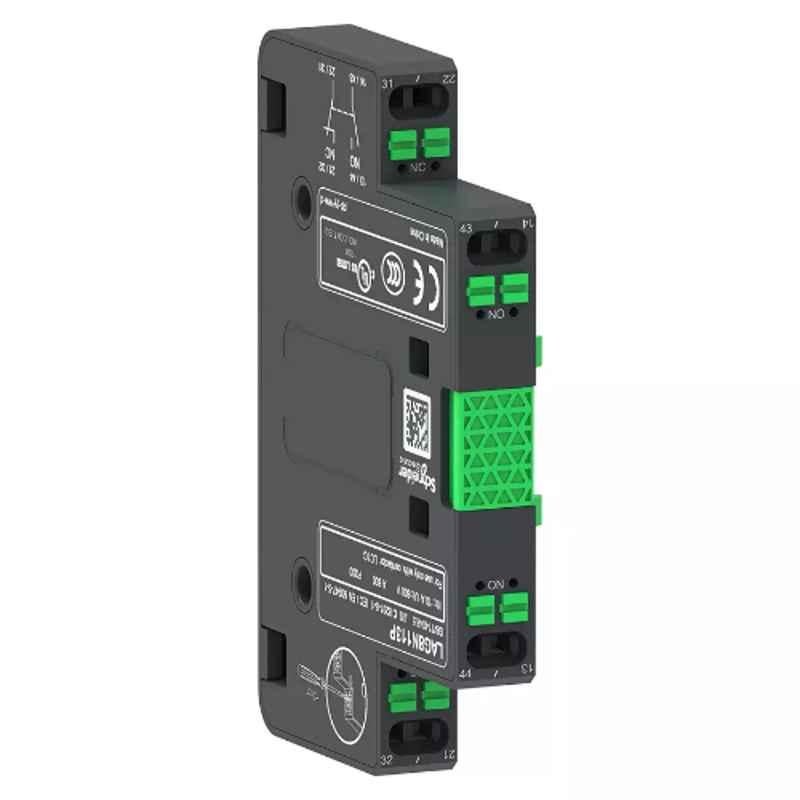

Schneider Electric TeSys Giga LAG8N113P L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block

Name: Schneider Electric TeSys Giga LAG8N113P L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block
Brand: Schneider Electric
SKU: MSNO5WN1D6LW51
Price: 1322 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹1,322 (Incl. of all taxes)

₹1,121 ₹201 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Push‑in (spring‑clamp) Side Terminals for Quick, Tool‑free Wiring.
Provides Versatile 1 No Plus 1 Nc Auxiliary Contacts for Both Signaling & Interlock Circuits.
Highly Reliable: Operates down to 17v-1ma, Ip20, −25°c to Plus60°c, & Rated for 10‑a Switching with 8million Mechanical Cycles.

Product Specifications

Brand	Schneider Electric
Additional Details	Connection Terminal: Screw Clamp Terminals: 0.75-2.5 mm² Solid Stranded without Cable End & Screw Clamp Terminals: 0.75-2.5 mm² Flexible With Cable End Switching Current: 1 mA
Air temperature	-60-80 deg C
Depth	84.8 mm
Height	55.8 mm
Insulation Resistance	10 Mohm
Mechanical Durability	8 M Cycles
Model	LAG8N113P
Mounting type	Side
Notes	Image for reference purposes only
Number of Contacts	1 NO & 1 NC
Operating Altitude	3000 m
Protection Class	IP20
Rated Insulation Voltage	500 V conforming to IEC 60947-5-1, 500 V - certifications CSA, 500 V - certifications UL
Rated Making Capacity	140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
Series	TeSys Giga
Standards	EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB 14048.5
Suitable For	Product Range Compatibility: TeSys G
Voltage	500 V AC 25-400 Hz
Weight	50 g
Width	15.4 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys Giga LAG8N113P L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block is a reliable and efficient component in the Relays & Contactors category. Manufactured by Schneider Electric, a reputable brand in the industry, this contact block is designed to withstand extreme air temperatures ranging from -60 to 80 degrees Celsius.

With a rated making capacity of 140 A AC conforming to IEC 60947-5-1 and 250 A DC conforming to IEC 60947-5-1, this contact block is capable of handling high electrical loads effectively. Despite its robust and durable construction, it weighs just 50 g, making it lightweight and easy to handle.

The mounting type of this contact block is side-mount, allowing for convenient installation in various applications. It features one normally open (NO) and one normally closed (NC) contact, providing flexibility and versatility in switch control.

Please note that the image shown is for reference purposes only, and the actual product may differ slightly in appearance.

Additional details include the connection terminal type, which is a screw clamp terminal suitable for solid stranded wires without cable ends and flexible wires with cable ends, ranging from 0.75 to 2.5 mm² in size.

In summary, the Schneider Electric TeSys Giga LAG8N113P L1/R1 1NO+1NC Push-in Terminals Auxiliary Contact Block is a reliable and high-quality component that can withstand extreme temperatures and handle high electrical loads effectively. It is a valuable addition to any electrical system requiring reliable and efficient relay and contactor components.
