Schneider Electric TeSys Giga LAG8N203 L1/R1 2NO Push-in Terminals Auxiliary Contact Block

Hover to Zoom

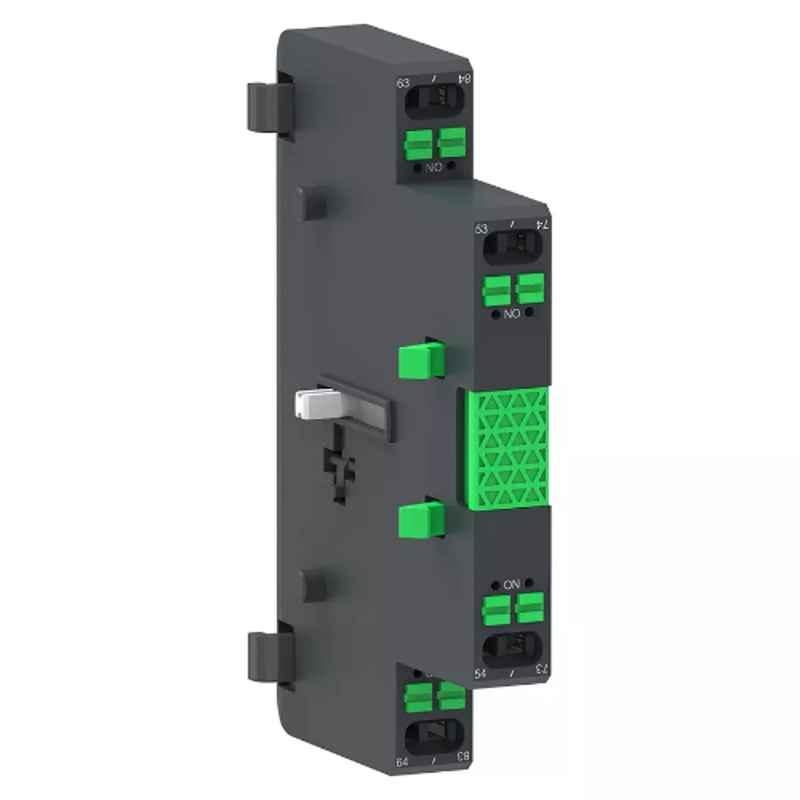

Schneider Electric TeSys Giga LAG8N203 L1/R1 2NO Push-in Terminals Auxiliary Contact Block

Name: Schneider Electric TeSys Giga LAG8N203 L1/R1 2NO Push-in Terminals Auxiliary Contact Block
Brand: Schneider Electric
SKU: MSNE5N8QJ040KL
Price: 1718 INR
Availability: OutOfStock

₹1,718 (Incl. of all taxes)

₹1,456 ₹262 GST

AVAILABLE ON REQUEST

About This Product

Key Features

2 NO Contacts for Control.
Suits Tesys Giga Contactors.
Push-in Terminals for Fast Wiring.

Product Specifications

Brand	Schneider Electric
Additional Details	Connection Terminal: Screw Clamp Terminals: 0.75-2.5 mm² Solid Stranded without Cable End & Screw Clamp Terminals: 0.75-2.5 mm² Flexible With Cable End Switching Current: 1 mA
Air temperature	-60-80 deg C
Depth	84.8 mm
Height	55.8 mm
Insulation Resistance	10 Mohm
Mechanical Durability	8 M Cycles
Model	LAG8N203
Mounting type	Side
Notes	Image for reference purposes only
Number of Contacts	2 NO
Operating Altitude	3000 m
Protection Class	IP20
Rated Insulation Voltage	500 V conforming to IEC 60947-5-1, 500 V - certifications CSA, 500 V - certifications UL
Rated Making Capacity	140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
Series	TeSys Giga
Standards	EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB 14048.5
Suitable For	Product Range Compatibility: TeSys G
Voltage	500 V AC 25-400 Hz
Weight	50 g
Width	15.4 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys Giga LAG8N203 L1/R1 2NO Push-in Terminals Auxiliary Contact Block is an essential component in the world of relays and contactors. Designed by Schneider Electric, a trusted brand in electrical equipment, this contact block is built to withstand extreme conditions with an air temperature range of -60 to 80 degrees Celsius.

With a rated making capacity of 140A AC and 250A DC, this contact block conforms to IEC 60947-5-1 standards, ensuring reliable performance. Despite its durable construction, it is incredibly lightweight, weighing only 50g.

The mounting type is on the side, allowing for easy installation and integration into existing systems. It features two normally open (NO) contacts, providing flexibility in control applications. Please note that the image provided is for reference purposes only.

In terms of additional details, the TeSys Giga LAG8N203 offers various connection terminal options. It supports solid and stranded wires without cable ends through screw clamp terminals, ranging from 0.75mm² to 2.5mm². For flexible wires with cable ends, it also accommodates the same range in size.

Overall, the Schneider Electric TeSys Giga LAG8N203 L1/R1 2NO Push-in Terminals Auxiliary Contact Block is a reliable and versatile component for your relay and contactor needs.
