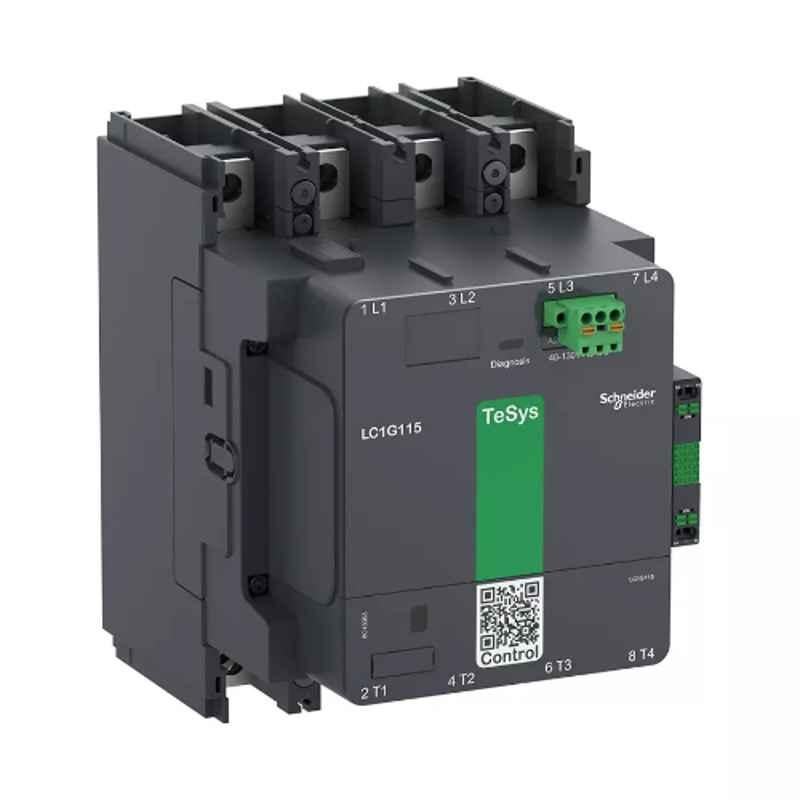

Schneider Electric TeSys Giga LC1G1154KUEN 4 Pole AC-1 440V 250A AC/DC Coil High Power Contactor

Name: Schneider Electric TeSys Giga LC1G1154KUEN 4 Pole AC-1 440V 250A AC/DC Coil High Power Contactor
Brand: Schneider Electric
SKU: MSN8580J7EYL92
Price: 46869 INR
Availability: OutOfStock

₹46,869 (Incl. of all taxes)

₹39,720 ₹7,149 GST

AVAILABLE ON REQUEST

About This Product

Key Features

AC/DC Coil Operation.
Tesys Gig Amp Heavy Duty.
4-pole 250 Amp Power Contactor.

Product Specifications

Brand	Schneider Electric
Additional Details	Average Impedance: 0.00018 Ohm Coil Technology: Built-in bidirectional peak limiting Compatibility Code: LC1G Connection Pitch: 35 mm Fuse Rating: 125 A aM at 440 V for motor, 125 A aM at 690 V for motor, 315 A gG at 690 V Operating Time: 40-70 ms closing, 15-50 ms opening Pole Contact Composition: 4 NO Power Dissipation Per Pole: 10 W AC-1-Ith 250 A Tightening Torque: 18 Nm Voltage Category: III
Air temperature	-60-80 deg C
Application	Power Switching
Breaking Capacity	1040 A at 440 V
Colour	Dark Grey
Depth	193 mm
Frequency	50/60 Hz
Height	193 mm
Mechanical Durability	8 M Cycles
Model	LC1G1154KUEN
Mounting type	Plate
Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	4 Pole
Operating Rate	300 cyc/h AC-1
Protection Class	IP2X
Rated Insulation Voltage	1000 V
Series	TeSys Giga
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys Giga
Voltage	1000 V AC, 460 V DC
Weight	4.4 kg
Width	143 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys Giga LC1G1154KUEN High Power Contactor is an essential component in the Relays & Contactors category. This 4 Pole AC-1 contactor is designed to handle high-power applications with a voltage of 440V and a current rating of 250A. It is built to withstand extreme air temperatures ranging from -60 to 80 degrees Celsius, making it suitable for a wide range of industrial environments.

With a weight of 4.4 kg, this contactor ensures stability and durability. It is easy to install with its plate mounting type, allowing for a hassle-free setup. The contactor features 1 normally open (NO) and 1 normally closed (NC) contact, providing flexibility in usage. The breaking capacity of this contactor is an impressive 1040A at 440V, ensuring safe and efficient operation.

Please note that the image provided is for reference purposes only. The Schneider Electric TeSys Giga LC1G1154KUEN 4 Pole AC-1 440V 250A AC/DC Coil High Power Contactor is a reliable and high-performance solution for demanding applications.
