Schneider Electric TeSys Giga LC1G150EHEN 3 Pole AC-3 440V 150A AC/DC Coil High Power Contactor

Name: Schneider Electric TeSys Giga LC1G150EHEN 3 Pole AC-3 440V 150A AC/DC Coil High Power Contactor
Brand: Schneider Electric
SKU: MSN8KLPXJLLR5V
Price: 22427 INR
Availability: OutOfStock

₹22,427 (Incl. of all taxes)

₹19,006 ₹3,421 GST

MRP ₹37,665 40% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Durable with Wide Voltage Range.
Handles Heavy AC/DC Loads Easily.
3-pole 150 Amp High Power Contactor.

Product Specifications

Brand	Schneider Electric
Additional Details	Average Impedance: 0.00018 Ohm Coil Technology: Built-in bidirectional peak limiting Compatibility Code: LC1G Connection Pitch: 35 mm Fuse Rating: 160 A aM at 440 V for motor, 160 A aM at 690 V for motor, 315 A gG at 690 V Operating Time: 40-70 ms closing, 15-50 ms opening Pole Contact Composition: 3 NO Power Dissipation Per Pole: 10 W AC-1-Ith 275 A, 5 W AC-3-Ith 150 A Tightening Torque: 18 Nm Voltage Category: III
Air temperature	-60-80 deg C
Application	Power switching, Motor control
Breaking Capacity	1280 A at 440 V
Colour	Dark Grey
Depth	193 mm
Frequency	50/60 Hz
Height	193 mm
Mechanical Durability	8 M Cycles
Model	LC1G150EHEN
Motor Power	40 hp at 200/208 V 60 Hz, 50 hp at 230/240 V 60 Hz, 100 hp at 460/480 V 60 Hz, 125 hp at 575/600 V 60 Hz 37 kW at 230 V AC 50/60 Hz (AC-3e), 75 kW at 400 V AC 50/60 Hz (AC-3e), 75 kW at 415 V AC 50/60 Hz (AC-3e), 90 kW at 440 V AC 50/60 Hz (AC-3e), 90 kW at 500 V AC 50/60 Hz (AC-3e), 90 kW at 690 V AC 50/60 Hz (AC-3e), 75 kW at 1000 V AC 50/60 Hz (AC-3e), 37 kW at 230 V AC 50/60 Hz (AC-3), 75 kW at 400 V AC 50/60 Hz (AC-3), 75 kW at 415 V AC 50/60 Hz (AC-3), 90 kW at 440 V AC 50/60 Hz (AC-3), 90 kW at 500 V AC 50/60 Hz (AC-3), 90 kW at 690 V AC 50/60 Hz (AC-3), 75 kW at 1000 V AC 50/60 Hz (AC-3), 37 kW at 230 V AC 50/60 Hz (AC-4), 75 kW at 400 V AC 50/60 Hz (AC-4), 75 kW at 415 V AC 50/60 Hz (AC-4), 80 kW at 440 V AC 50/60 Hz (AC-4), 90 kW at 500 V AC 50/60 Hz (AC-4), 90 kW at 690 V AC 50/60 Hz (AC-4), 75 kW at 1000 V AC 50/60 Hz (AC-4)
Mounting type	Plate

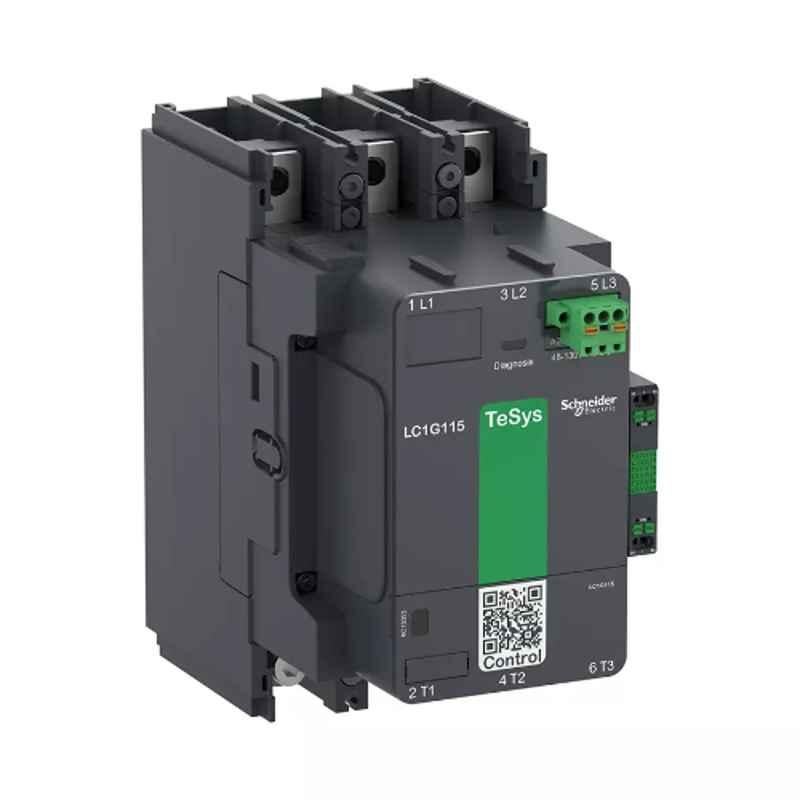

Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	3 Pole
Operating Rate	300 cyc/h AC-1, 500 cyc/h AC-3, 500 cyc/h AC-3e, 150 cyc/h AC-4
Protection Class	IP2X
Rated Insulation Voltage	1000 V
Series	TeSys Giga
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys Giga
Voltage	1000 V AC, 460 V DC
Weight	3.6 kg
Width	108 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys Giga LC1G150EHEN is a high-power contactor designed for reliable performance in demanding environments. It falls under the category of Relays & Contactors and is proudly manufactured by Schneider Electric, a trusted brand in the industry. This contactor is built to withstand extreme air temperatures ranging from -60 to 80 degrees Celsius, making it suitable for various applications.

With its 3-pole configuration, this contactor ensures efficient and safe electrical connections. It weighs just 3.6 kg, making it lightweight and easy to handle during installation. The mounting type for this contactor is plate, providing a sturdy and secure connection.

With 1 normally open (NO) and 1 normally closed (NC) contact, this contactor offers flexibility in circuit control. Its breaking capacity reaches an impressive 1280 A at 440 V, ensuring reliable performance in high-power applications.

Please note that the image provided is for reference purposes only and may not depict the exact appearance of the product.

Overall, the Schneider Electric TeSys Giga LC1G150EHEN is a durable and efficient contactor suitable for a wide range of industrial and commercial applications.
