Schneider Electric TeSys Giga LC1G1854EHEN 4 Pole AC-1 440V 305A AC/DC Coil High Power Contactor

Name: Schneider Electric TeSys Giga LC1G1854EHEN 4 Pole AC-1 440V 305A AC/DC Coil High Power Contactor
Brand: Schneider Electric
SKU: MSN2KM1RJL689V
Price: 69679 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹69,679 (Incl. of all taxes)

₹59,050 ₹10,629 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Ac/dc Coil for Flexible Use.
Massive Current Switching Capacity.
Built Tough for High-demand Systems.

Product Specifications

Brand	Schneider Electric
Additional Details	Average Impedance: 0.00017 Ohm Coil Technology: Built-in bidirectional peak limiting Compatibility Code: LC1G Connection Pitch: 35 mm Fuse Rating: 200 A aM at 440 V for motor, 160 A aM at 690 V for motor, 315 A gG at 690 V Operating Time: 40-70 ms closing, 15-50 ms opening Pole Contact Composition: 4 NO Power Dissipation Per Pole: 20 W AC-1-Ith 305 A Tightening Torque: 18 Nm Voltage Category: III
Air temperature	-60-80 deg C
Application	Power Switching
Breaking Capacity	1610 A at 440 V
Colour	Dark Grey
Depth	193 mm
Frequency	50/60 Hz
Height	193 mm
Mechanical Durability	8 M Cycles
Model	LC1G1854EHEN
Mounting type	Plate

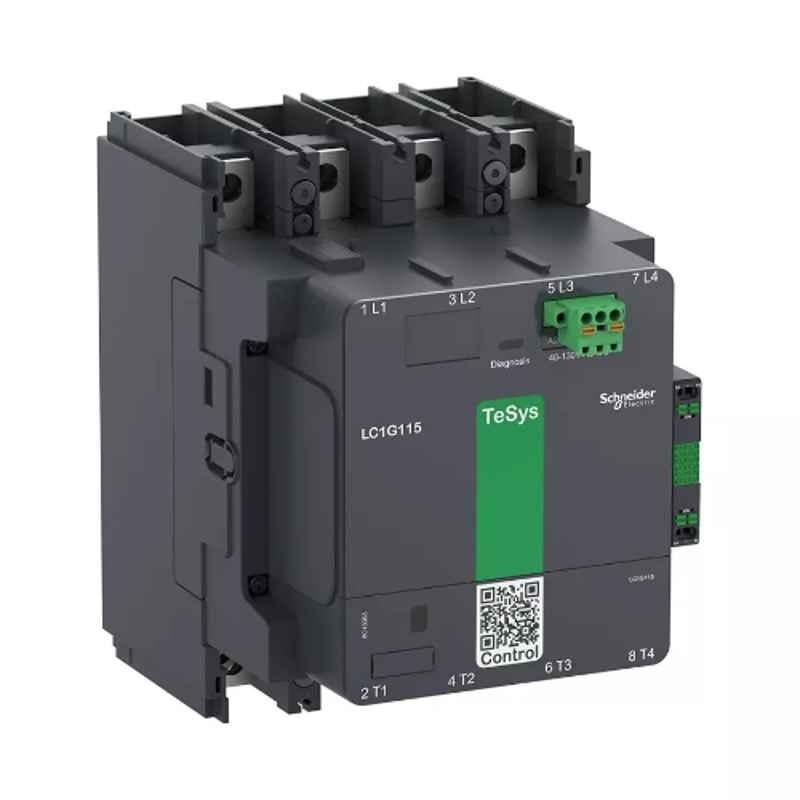

Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	4 Pole
Operating Rate	300 cyc/h AC-1
Protection Class	IP2X
Rated Insulation Voltage	1000 V
Series	TeSys Giga
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys Giga
Voltage	1000 V AC, 460 V DC
Weight	4.4 kg
Width	143 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

Introducing the Schneider Electric TeSys Giga LC1G1854EHEN 4-Pole AC-1 440V 305A AC/DC Coil High Power Contactor, a reliable and durable solution for all your electrical needs. As a part of our extensive Relays & Contactors category, this product from the renowned Schneider Electric brand is designed to provide exceptional performance in various applications. With a wide operating air temperature range of -60 to 80 degrees Celsius, this high-power contactor can withstand extreme environments. The 4-pole configuration ensures efficient power transmission, while the 1 NO + 1 NC contacts add versatility to your electrical setup. Weighing just 4.4 kg, this contactor can be easily mounted using its plate mounting type. It boasts a breaking capacity of 1610 A at 440V, ensuring reliable and safe operation. Please note that the image provided is for reference purposes only, allowing you to visualize the product's features. Invest in the Schneider Electric TeSys Giga LC1G1854EHEN 4-Pole AC-1 440V 305A AC/DC Coil High Power Contactor for a seamless and efficient electrical solution.
