Schneider Electric TeSys Giga LC1G2254EHEN 4 Pole AC-1 440V 330A AC/DC Coil High Power Contactor

Hover to Zoom

Schneider Electric TeSys Giga LC1G2254EHEN 4 Pole AC-1 440V 330A AC/DC Coil High Power Contactor

Name: Schneider Electric TeSys Giga LC1G2254EHEN 4 Pole AC-1 440V 330A AC/DC Coil High Power Contactor
Brand: Schneider Electric
SKU: MSNO5WN1DWPW51
Price: 81849 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹81,849 (Incl. of all taxes)

₹69,364 + ₹12,485 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Compact & Robust for Industrial Use.
Suitable for Both AC & DC Coil Operation.
4-pole Design for Enhanced Switching Capacity.

Product Specifications

Brand	Schneider Electric
Additional Details	Average Impedance: 0.00015 Ohm Coil Technology: Built-in bidirectional peak limiting Compatibility Code: LC1G Connection Pitch: 35 mm Fuse Rating: 250 A aM at 440 V for motor, 200 A aM at 690 V for motor, 400 A gG at 690 V Operating Time: 40-70 ms closing, 15-50 ms opening Pole Contact Composition: 4 NO Power Dissipation Per Pole: 20 W AC-1-Ith 330 A Tightening Torque: 18 Nm Voltage Category: III
Air temperature	-60-80 deg C
Application	Power Switching
Breaking Capacity	2050 A at 440 V
Colour	Dark Grey
Depth	193 mm
Frequency	50/60 Hz
Height	193 mm
Mechanical Durability	8 M Cycles
Model	LC1G2254EHEN
Mounting type	Plate

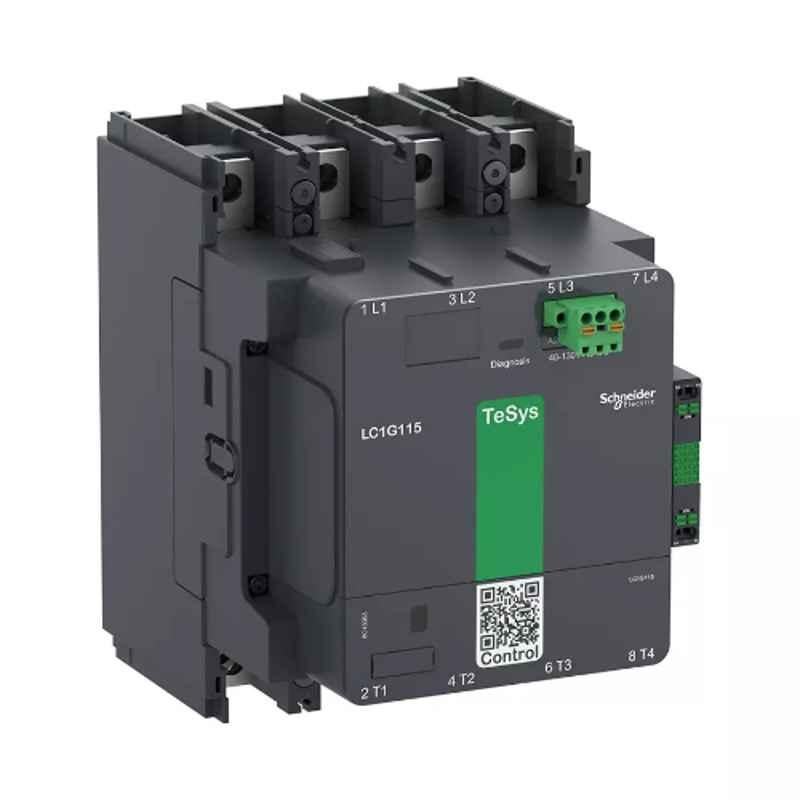

Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	4 Pole
Operating Rate	300 cyc/h AC-1
Protection Class	IP2X
Rated Insulation Voltage	1000 V
Series	TeSys Giga
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys Giga
Voltage	1000 V AC, 460 V DC
Weight	4.4 kg
Width	143 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys Giga LC1G2254EHEN is a high-power contactor designed for reliable performance in challenging environments. With a 4-pole configuration, this contactor is suitable for a variety of industrial applications. It features an AC/DC coil for enhanced versatility and can withstand air temperatures ranging from -60 to 80 degrees Celsius, making it ideal for use in extreme conditions.

Weighing just 4.4 kg, this contactor is lightweight and easy to install. Its plate mounting type ensures a secure and stable attachment. It has 1 normally open (NO) contact and 1 normally closed (NC) contact, providing flexibility in wiring configurations.

The Schneider Electric TeSys Giga LC1G2254EHEN contactor has a breaking capacity of 2050 A at 440 V, ensuring reliable operation even in high-powered applications. Please note that the image provided is for reference purposes only. Choose Schneider Electric for superior contactors and relays that deliver robust performance.
