Schneider Electric TeSys Giga LC1G2654KUEN 4 Pole AC-1 440V 385A AC/DC Coil High Power Contactor

Name: Schneider Electric TeSys Giga LC1G2654KUEN 4 Pole AC-1 440V 385A AC/DC Coil High Power Contactor
Brand: Schneider Electric
SKU: MSN8KLPXJ44R5V
Price: 91514 INR
Availability: OutOfStock

₹91,514 (Incl. of all taxes)

₹77,555 ₹13,959 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Ac-1 Duty, AC/DC Coil.
385 Amp 4P High Power Contactor.
Tesys Giga Industrial Solution.

Product Specifications

Brand	Schneider Electric
Additional Details	Average Impedance: 0.000144 Ohm Coil Technology: Built-in bidirectional peak limiting Compatibility Code: LC1G Connection Pitch: 45 mm Fuse Rating: 315 A aM at 440 V for motor, 250 A aM at 690 V for motor, 400 A gG at 690 V Operating Time: 40-70 ms closing, 15-50 ms opening Pole Contact Composition: 4 NO Power Dissipation Per Pole: 20 W AC-1-Ith 385 A Tightening Torque: 35 Nm Voltage Category: III
Air temperature	-60-80 deg C
Application	Power Switching
Breaking Capacity	2380 A at 440 V
Colour	Dark Grey
Depth	226 mm
Frequency	50/60 Hz
Height	225 mm
Mechanical Durability	8 M Cycles
Model	LC1G2654KUEN
Mounting type	Plate

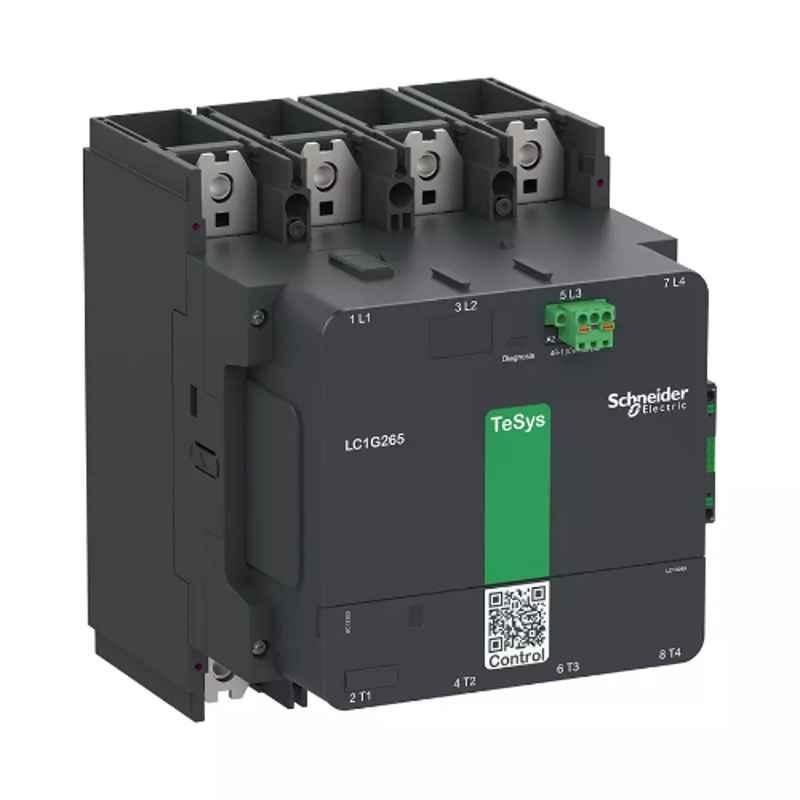

Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	4 Pole
Operating Rate	300 cyc/h AC-1
Protection Class	IP2X
Rated Insulation Voltage	1000 V
Series	TeSys Giga
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys Giga
Voltage	1000 V AC, 460 V DC
Weight	8.2 kg
Width	185 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

Introducing the Schneider Electric TeSys Giga LC1G2654KUEN 4 Pole AC-1 440V 385A AC/DC Coil High Power Contactor, a reliable and high-performance solution for your electrical needs. As part of our wide range of relays and contactors, this product is perfect for various industrial and commercial applications.

Designed to withstand extreme conditions, this contactor is built to endure air temperatures ranging from -60 to 80 degrees Celsius. With its 4 poles configuration, it provides efficient power delivery and control in demanding environments.

Weighing at 8.2 kg, this contactor is robust yet compact, making it easy to install and suitable for various setups. Its plate mounting type ensures stability and durability during operation.

Equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) contacts, this contactor offers versatile functionality to meet your specific requirements. It boasts a high breaking capacity of 2380 A at 440 V, ensuring reliable performance and protection for your electrical circuits.

Please note that the image provided is for reference purposes only, showcasing the product’s design and features. Trust the Schneider Electric brand for exceptional quality and performance in all your electrical solutions.
