Schneider Electric TeSys Giga LC1G265EHEN 3 Pole AC-3 440V 265A AC/DC Coil High Power Contactor

Hover to Zoom

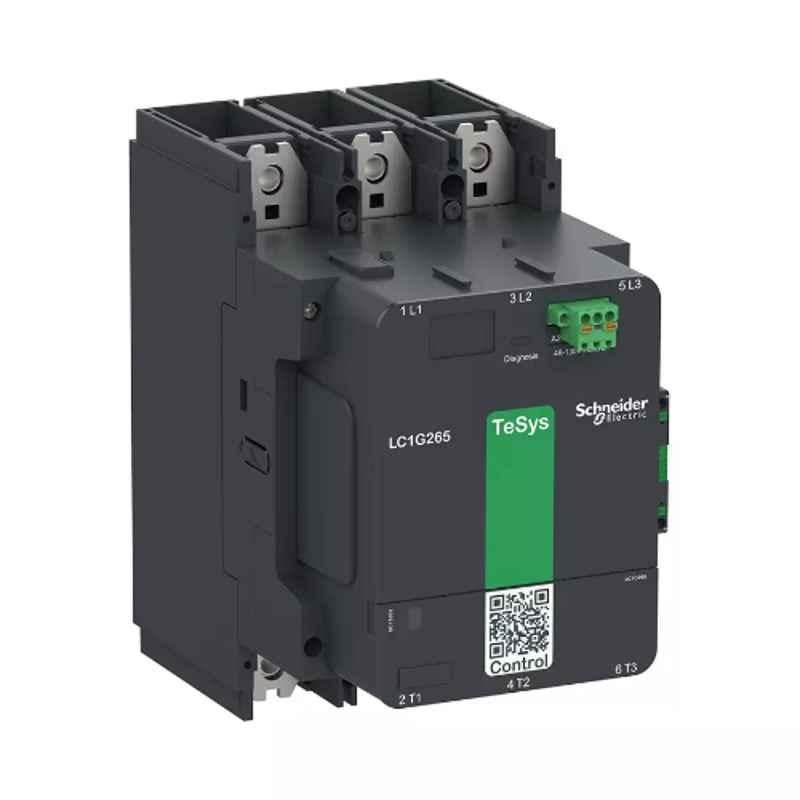

Schneider Electric TeSys Giga LC1G265EHEN 3 Pole AC-3 440V 265A AC/DC Coil High Power Contactor

Name: Schneider Electric TeSys Giga LC1G265EHEN 3 Pole AC-3 440V 265A AC/DC Coil High Power Contactor
Brand: Schneider Electric
SKU: MSNR50N3QD0451
Price: 36762 INR
Availability: OutOfStock

₹36,762 (Incl. of all taxes)

₹31,155 ₹5,607 GST

MRP ₹61,740 40% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Rated for 440V & 265 Amp for Heavy-duty Use.
3-pole Design for Efficient Power Control.
AC/DC Coil Ensures Versatile Operational Control.

Product Specifications

Brand	Schneider Electric
Additional Details	Average Impedance: 0.000144 Ohm Coil Technology: Built-in bidirectional peak limiting Compatibility Code: LC1G Connection Pitch: 45 mm Fuse Rating: 315 A aM at 440 V for motor, 250 A aM at 690 V for motor, 400 A gG at 690 V Operating Time: 40-70 ms closing, 15-50 ms opening Pole Contact Composition: 3 NO Power Dissipation Per Pole: 20 W AC-1-Ith 385 A, 11 W AC-3-Ith 265 A Tightening Torque: 35 Nm Voltage Category: III
Air temperature	-60-80 deg C
Application	Power switching, Motor control
Breaking Capacity	2380 A at 440 V
Colour	Dark Grey
Depth	226 mm
Frequency	50/60 Hz
Height	225 mm
Mechanical Durability	8 M Cycles
Model	LC1G265EHEN
Motor Power	75 hp at 200/208 V 60 Hz, 100 hp at 230/240 V 60 Hz, 200 hp at 460/480 V 60 Hz, 200 hp at 575/600 V 60 Hz 75 kW at 230 V AC 50/60 Hz (AC-3e), 132 kW at 400 V AC 50/60 Hz (AC-3e), 132 kW at 415 V AC 50/60 Hz (AC-3e), 160 kW at 440 V AC 50/60 Hz (AC-3e), 160 kW at 500 V AC 50/60 Hz (AC-3e), 200 kW at 690 V AC 50/60 Hz (AC-3e), 160 kW at 1000 V AC 50/60 Hz (AC-3e), 75 kW at 230 V AC 50/60 Hz (AC-3), 132 kW at 400 V AC 50/60 Hz (AC-3), 132 kW at 415 V AC 50/60 Hz (AC-3), 160 kW at 440 V AC 50/60 Hz (AC-3), 160 kW at 500 V AC 50/60 Hz (AC-3), 200 kW at 690 V AC 50/60 Hz (AC-3), 160 kW at 1000 V AC 50/60 Hz (AC-3), 75 kW at 230 V AC 50/60 Hz (AC-4), 132 kW at 400 V AC 50/60 Hz (AC-4), 132 kW at 415 V AC 50/60 Hz (AC-4), 150 kW at 440 V AC 50/60 Hz (AC-4), 160 kW at 500 V AC 50/60 Hz (AC-4), 160 kW at 690 V AC 50/60 Hz (AC-4), 160 kW at 1000 V AC 50/60 Hz (AC-4)
Mounting type	Plate
Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	3 Pole
Operating Rate	300 cyc/h AC-1, 500 cyc/h AC-3, 500 cyc/h AC-3e, 150 cyc/h AC-4
Protection Class	IP2X
Rated Insulation Voltage	1000 V
Series	TeSys Giga
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys Giga
Voltage	1000 V AC, 460 V DC
Weight	7.5 kg
Width	140 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys Giga LC1G265EHEN High Power Contactor is a reliable and efficient solution for controlling electrical circuits in various applications. This 3 pole contactor, part of the Relays & Contactors category, is designed to withstand extreme air temperatures ranging from -60 to 80 degrees Celsius, making it suitable for a wide range of industrial environments.

With a weight of 7.5 kg, this contactor is robust and built to last. Its plate mounting type ensures easy installation and secure attachment. It features 1 normally open (NO) contact and 1 normally closed (NC) contact, providing flexibility and options for circuit control.

Operating at a voltage of 440V and a current of 265A, this contactor delivers high power performance. It boasts a breaking capacity of 2380A at 440V, ensuring reliable operation even when dealing with high electrical loads.

Please note that the image provided is for reference purposes only and may not represent the exact product. Trust Schneider Electric, a reputable brand known for its quality and reliability in the electrical industry.
