Schneider Electric TeSys Giga LC1G330EHEN 3 Pole AC-3 440V 330A AC/DC Coil High Power Contactor

Hover to Zoom

Schneider Electric TeSys Giga LC1G330EHEN 3 Pole AC-3 440V 330A AC/DC Coil High Power Contactor

Name: Schneider Electric TeSys Giga LC1G330EHEN 3 Pole AC-3 440V 330A AC/DC Coil High Power Contactor
Brand: Schneider Electric
SKU: MSNVK13XQZZJ91
Price: 44454 INR
Availability: OutOfStock

₹44,454 (Incl. of all taxes)

₹37,674 ₹6,780 GST

MRP ₹74,660 40% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Suitable for Both AC & DC Coil Operation.
330 Amp Current Rating for Heavy-duty Applications.
3-pole Configuration for Efficient Multi-phase Control.

Product Specifications

Brand	Schneider Electric
Additional Details	Average Impedance: 0.000144 Ohm Coil Technology: Built-in bidirectional peak limiting Compatibility Code: LC1G Connection Pitch: 45 mm Fuse Rating: 400 A aM at 440 V for motor, 250 A aM at 690 V for motor, 500 A gG at 690 V Operating Time: 40-70 ms closing, 15-50 ms opening Pole Contact Composition: 3 NO Power Dissipation Per Pole: 30 W AC-1-Ith 440 A, 16 W AC-3-Ith 330 A Tightening Torque: 35 Nm Voltage Category: III
Air temperature	-60-80 deg C
Application	Power switching, Motor control
Breaking Capacity	2940 A at 440 V
Colour	Dark Grey
Depth	226 mm
Frequency	50/60 Hz
Height	225 mm
Mechanical Durability	8 M Cycles
Model	LC1G330EHEN
Motor Power	100 hp at 200/208 V 60 Hz, 125 hp at 230/240 V 60 Hz, 250 hp at 460/480 V 60 Hz, 300 hp at 575/600 V 60 Hz 90 kW at 230 V AC 50/60 Hz (AC-3e), 160 kW at 400 V AC 50/60 Hz (AC-3e), 160 kW at 415 V AC 50/60 Hz (AC-3e), 185 kW at 440 V AC 50/60 Hz (AC-3e), 200 kW at 500 V AC 50/60 Hz (AC-3e), 220 kW at 690 V AC 50/60 Hz (AC-3e), 185 kW at 1000 V AC 50/60 Hz (AC-3e), 90 kW at 230 V AC 50/60 Hz (AC-3), 160 kW at 400 V AC 50/60 Hz (AC-3), 160 kW at 415 V AC 50/60 Hz (AC-3), 200 kW at 440 V AC 50/60 Hz (AC-3), 200 kW at 500 V AC 50/60 Hz (AC-3), 220 kW at 690 V AC 50/60 Hz (AC-3), 185 kW at 1000 V AC 50/60 Hz (AC-3), 90 kW at 230 V AC 50/60 Hz (AC-4), 160 kW at 400 V AC 50/60 Hz (AC-4), 160 kW at 415 V AC 50/60 Hz (AC-4), 185 kW at 440 V AC 50/60 Hz (AC-4), 200 kW at 500 V AC 50/60 Hz (AC-4), 220 kW at 690 V AC 50/60 Hz (AC-4), 185 kW at 1000 V AC 50/60 Hz (AC-4)
Mounting type	Plate

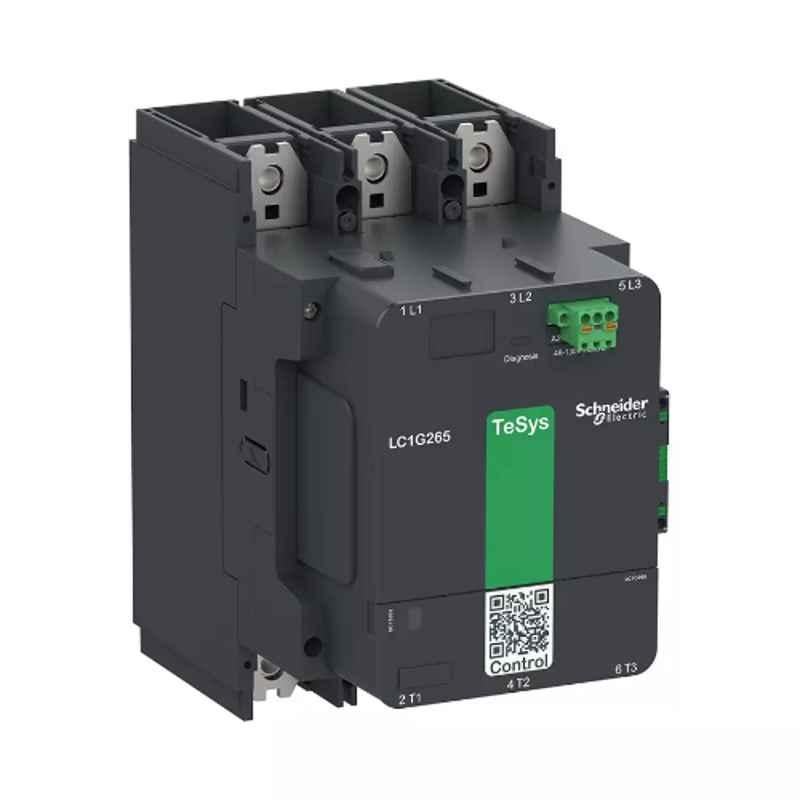

Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	3 Pole
Operating Rate	300 cyc/h AC-1, 500 cyc/h AC-3, 500 cyc/h AC-3e, 150 cyc/h AC-4
Protection Class	IP2X
Rated Insulation Voltage	1000 V
Series	TeSys Giga
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys Giga
Voltage	1000 V AC, 460 V DC
Weight	7.5 kg
Width	140 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

Introducing the Schneider Electric TeSys Giga LC1G330EHEN 3 Pole AC-3 440V 330A AC/DC Coil High Power Contactor, a reliable and efficient solution for all your relay and contactor needs. Designed by the esteemed brand Schneider Electric, this contactor is perfect for applications in the relays and contactors category.

Operating within a wide air temperature range of -60 to 80 degrees Celsius, this robust contactor can withstand extreme conditions with ease. Its 3 pole design ensures optimal conductivity and performance, making it ideal for high-power applications. With a weight of 7.5 kg, this contactor is lightweight and easy to install.

Featuring a plate mounting type, this contactor can be easily mounted on various surfaces. It offers 1 Normally Open (NO) and 1 Normally Closed (NC) contact, providing flexibility in your electrical circuits. With a breaking capacity of 2940A at 440V, this contactor ensures safe and reliable operation.

Please note that the image provided is for reference purposes only. With its exceptional performance and durable construction, the Schneider Electric TeSys Giga LC1G330EHEN is the perfect choice for all your high-power contactor needs.
