Schneider Electric TeSys Giga LC1G4004EHEN 4 Pole AC-1 440V 550A AC/DC Coil High Power Contactor

Name: Schneider Electric TeSys Giga LC1G4004EHEN 4 Pole AC-1 440V 550A AC/DC Coil High Power Contactor
Brand: Schneider Electric
SKU: MSN8KLPXJ6DN5V
Price: 132359 INR
Availability: OutOfStock

₹132,359 (Incl. of all taxes)

₹112,169 + ₹20,190 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Works with AC/DC Coil.
4 Pole 550 Amp High Power.
Strong Performance under Load.

Product Specifications

Brand	Schneider Electric
Additional Details	Average Impedance: 0.0001 Ohm Coil Technology: Built-in bidirectional peak limiting Compatibility Code: LC1G Connection Pitch: 45 mm Fuse Rating: 500 A aM at 440 V for motor, 315 A aM at 690 V for motor, 630 A gG at 690 V Operating Time: 40-70 ms closing, 15-50 ms opening Pole Contact Composition: 4 NO Power Dissipation Per Pole: 30 W AC-1-Ith 550 A Tightening Torque: 35 Nm Voltage Category: III
Air temperature	-60-80 deg C
Application	Power Switching
Breaking Capacity	3480 A at 440 V
Colour	Dark Grey
Depth	226 mm
Frequency	50/60 Hz
Height	225 mm
Mechanical Durability	8 M Cycles
Model	LC1G4004EHEN
Mounting type	Plate

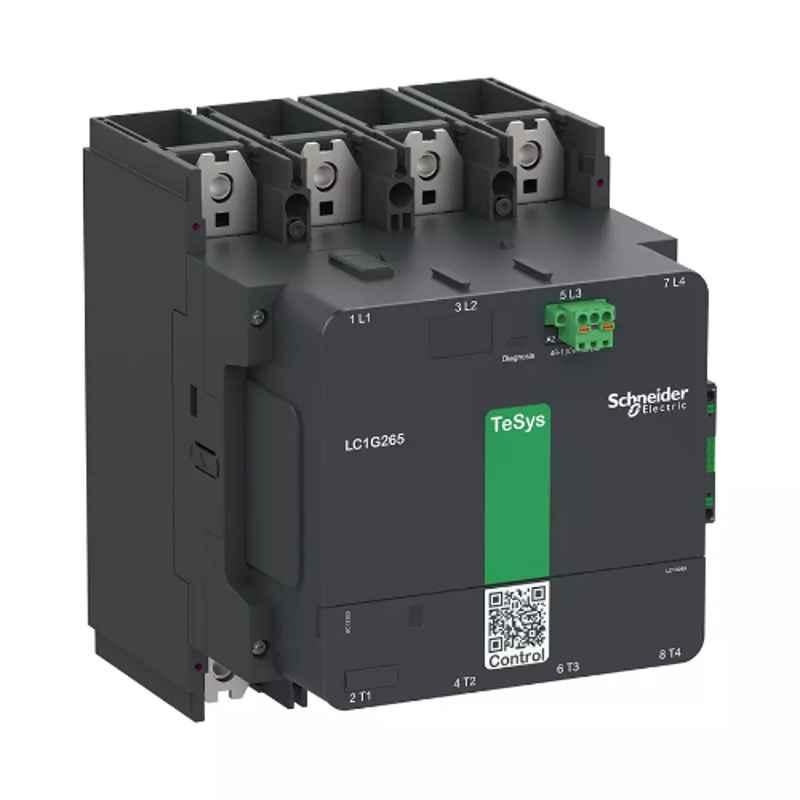

Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	4 Pole
Operating Rate	300 cyc/h AC-1
Protection Class	IP2X
Rated Insulation Voltage	1000 V
Series	TeSys Giga
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys Giga
Voltage	1000 V AC, 460 V DC
Weight	8.2 kg
Width	185 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

The Schneider Electric TeSys Giga LC1G4004EHEN 4 Pole AC-1 440V 550A AC/DC Coil High Power Contactor is a highly reliable and durable contactor designed to efficiently control electrical currents. This contactor falls under the category of Relays & Contactors and is proudly offered by Schneider Electric, a reputable brand known for its high-quality electrical equipment.

With an impressive air temperature range of -60 to 80 degrees Celsius, this contactor is suitable for use in extreme environmental conditions. Its 4-pole configuration allows for enhanced electrical performance, making it an ideal choice for demanding applications.

Despite its robust functionality, this contactor weighs only 8.2 kg, ensuring easy installation and convenient handling. It is designed for plate mounting, providing a secure and stable installation for consistent performance.

Featuring 1 normally open (NO) and 1 normally closed (NC) contact, this contactor can control electrical circuits effectively. With a breaking capacity of 3480 A at 440 V, it ensures safe and efficient operation.

Please note that the image shown is for reference purposes only and may not depict the exact model mentioned. Experience superior electrical control with the Schneider Electric TeSys Giga LC1G4004EHEN 4 Pole AC-1 440V 550A AC/DC Coil High Power Contactor.
