Schneider Electric TeSys Giga LC1G5004KUEN 4 Pole AC-1 440V 700A AC/DC Coil High Power Contactor

Hover to Zoom

Schneider Electric TeSys Giga LC1G5004KUEN 4 Pole AC-1 440V 700A AC/DC Coil High Power Contactor

Name: Schneider Electric TeSys Giga LC1G5004KUEN 4 Pole AC-1 440V 700A AC/DC Coil High Power Contactor
Brand: Schneider Electric
SKU: MSNG9VN347EDKP
Price: 195049 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹195,049 (Incl. of all taxes)

₹165,296 ₹29,753 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Handles up to 700 Amp at 440 V AC-1 with 4600a Breaking Capacity.
Operates with a 100-250 V AC/DC Wide-range Low-consumption Coil.
Offers 8 Million Mechanical Cycles & up to 600 Operations Per Hour.

Product Specifications

Brand	Schneider Electric
Additional Details	Average Impedance: 0.00008 Ohm Coil Technology: Built-in bidirectional peak limiting Compatibility Code: LC1G Connection Pitch: 45 mm Fuse Rating: 500 A aM at 440 V for motor, 400 A aM at 690 V for motor, 800 A gG at 690 V Operating Time: 40-70 ms closing, 15-50 ms opening Pole Contact Composition: 4 NO Power Dissipation Per Pole: 40 W AC-1-Ith 700 A Tightening Torque: 35 Nm Voltage Category: III
Air temperature	-60-80 deg C
Application	Power Switching
Breaking Capacity	4600 A at 440 V
Colour	Dark Grey
Depth	226 mm
Frequency	50/60 Hz
Height	225 mm
Mechanical Durability	8 M Cycles
Model	LC1G5004KUEN
Mounting type	Plate

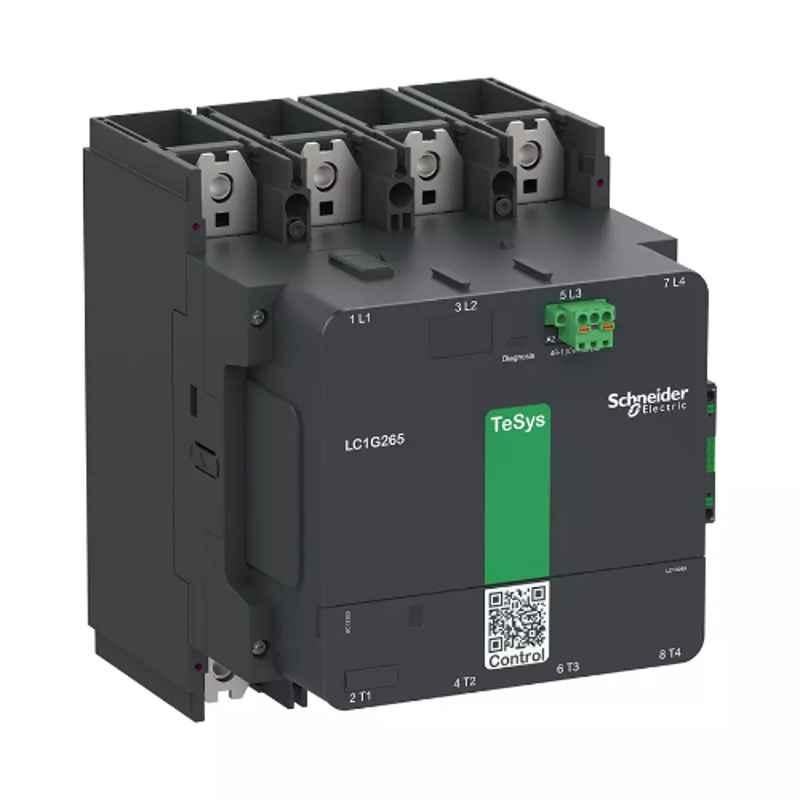

Notes	Image for reference purposes only
Number of Contacts	1 NO + 1 NC
Number of Poles	4 Pole
Operating Rate	300 cyc/h AC-1
Protection Class	IP2X
Rated Insulation Voltage	1000 V
Series	TeSys Giga
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1
Suitable For	Product Range Compatibility: TeSys Giga
Voltage	1000 V AC, 460 V DC
Weight	8.2 kg
Width	185 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Packer Details	Schneider Electric, 10th Floor, DLF Cyber City, Building Number 10 C,Gurgaon,Haryana-122002,,India
Common/Generic Name	Contactor
Dimensions LxWxH	270x270x180 mm
Weight	900 g

Show All Specifications

Product Details

Introducing the Schneider Electric TeSys Giga LC1G5004KUEN 4 Pole AC-1 440V 700A AC/DC Coil High Power Contactor, a reliable and high-performance solution for your electrical control needs. This contactor falls under the 'Relays & Contactors' category and is proudly brought to you by the reputable brand Schneider Electric.

Designed to withstand extreme air temperatures ranging from -60 to 80 degrees Celsius, this contactor ensures reliable operation even in challenging environments. With its 4 poles, it offers enhanced power distribution and control capabilities, making it suitable for a variety of applications.

The compact and lightweight design of this contactor, weighing only 8.2 kg, allows for easy installation and saves valuable space. It features a plate mounting type, further simplifying the setup process.

Equipped with 1 normally open (NO) and 1 normally closed (NC) contact, this contactor provides flexibility in controlling both AC and DC circuits. With a breaking capacity of 4600 A at 440 V, it guarantees efficient and safe power interruption when needed.

Please note that the image provided is for reference purposes only, highlighting the product's features. Bring efficiency and reliability to your electrical control system with the Schneider Electric TeSys Giga LC1G5004KUEN 4 Pole AC-1 440V 700A AC/DC Coil High Power Contactor.
