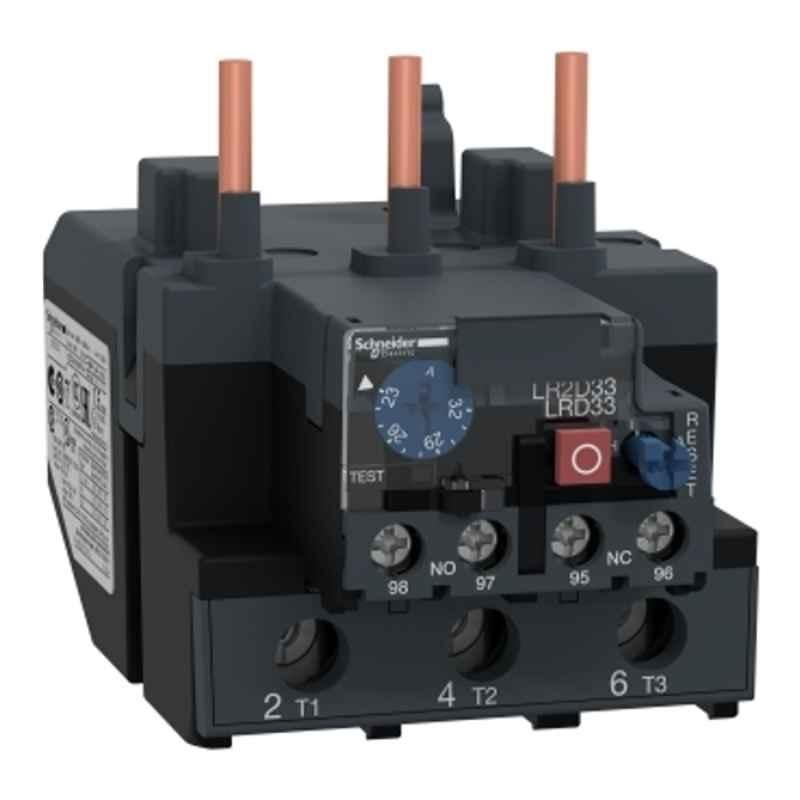

Schneider Electric TeSys LRD 23-32A 1 NO+1 NC Thermal Overload Relay, LRD3353

Name: Schneider Electric TeSys LRD 23-32A 1 NO+1 NC Thermal Overload Relay, LRD3353
Brand: Schneider Electric
SKU: MSNE5N8Y84XYKL
Price: 2875 INR
Availability: OutOfStock

₹2,875 (Incl. of all taxes)

₹2,437 ₹438 GST

MRP ₹5,375 46% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Schneider Electric
Item Code	LRD3353
Ambient Temperature	Storage: -60 to 70 deg C Operating: -20 to 60 deg C
Auxillary Contact	1 NO + 1 NC
Certification	IEC, UL, CSA, CCC, EAC, ATEX INERIS & UKCA
Class	10 Amp Tripping
Compatibility	LC1D80 & LC1D95
Control Type	Red Push-Button: Stop Blue Push-Button: Reset
Dielectric Strength	2.2 kV
Frequency	Network: 0-400 Hz
Protection Class	IP20
Rated Insulation Voltage	600 & 1000 V
Rated Operational Voltage (Ue)	1000 V AC
Series	TeSys LRD
Standards	EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5 & EN 50495
Suitable For	Motor Protection
Thermal Protection Adjustment Range	23-32 Amp
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, Delhi-110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, Delhi-110064 India
Dimensions LxWxH	4x5x6 cm
Weight	0.59 kg

Show All Specifications

Product Details

Schneider Electric TeSys LRD 23-32A 1 NO+1 NC Thermal Overload Relay, LRD3353 is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Thermal Overload Relay. All Schneider Electric TeSys LRD 23-32A 1 NO+1 NC Thermal Overload Relay, LRD3353 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric TeSys LRD 23-32A 1 NO+1 NC Thermal Overload Relay, LRD3353, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Thermal Overload Relay .
