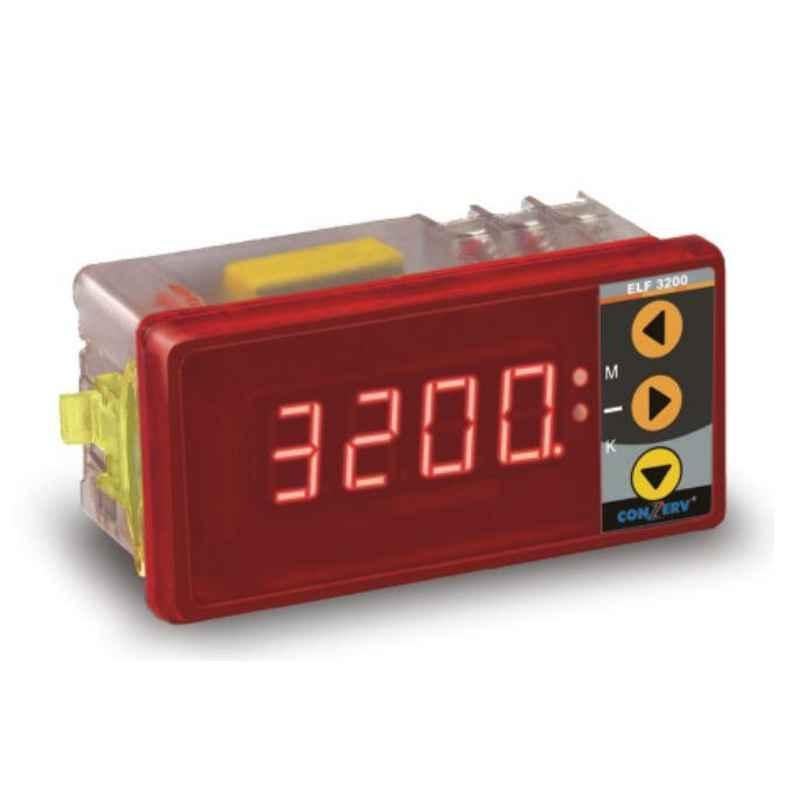

Schneider Electric Power & V,A,F Digital Energy Meters, ELF3234-3

Name: Schneider Electric Power & V,A,F Digital Energy Meters, ELF3234-3
Brand: Schneider Electric
SKU: MSN4K6ZO8WJ2KQ
Price: 4970 INR
Availability: OutOfStock

₹4,970 (Incl. of all taxes)

₹4,211 ₹759 GST

MRP ₹7,500 33% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

True RMS.
Auto-scrolling & Dustproof.
3 Phase Wiring Check.
Low CT, PT, Aux Supply Burden.
Large Multi-function display.
Wide range of Auxiliary Supply.
Protection from Accidental Contact with live Terminals.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Accuracy	Class 1.0: W / Wh: Class 1.0 as per IEC 62052-11 & IEC 62053-21, VAR / VARh: Class 2.0 All other parameters 1.0% of reading Class 0.5: W / Wh: Class 0.5 as per IEC 62052-11 & IEC 62053-21, VAR / VARh: Class 1.0
Ambient Temperature	Operating Temperature: -10 C to 60 C (14 F to 140 F)\|Storage Temperature: -25 deg C to + 70 deg C (-13 F to 158 F) Humidity: 5% to 95% Non Condensing
Customer Care Number	1800 103 0011
Dimension	Bezel 96x48 mm Depth 40 mm behind Bezel
Display Type	4 Digit 7 Segment 14 mm LED Dislay
Frequency	45 to 65 Hz
Input Current	Current inputs (A, A, A ) 1 2 3 Field configurable 1 A or 5 A (Range 50 mA to 6 A) Overload 10 A max. continuous 50 A max. for 3 sec
Item Code	ELF3234-3
Mounting	Flush Mount, Slide Lock
Resolution	Energy 8 digit (4 per page) Power, 3Ø V, A, Hz 4 digit
Sensor	True RMS, 1 sec update time 4 Quadrant Power & 2 Quadrant Energy
Voltage	4 Voltage inputs (V , V , V , V ) 1 2 3 N 110 or 415 V L-L nominal (Range 80 to 500 V L-L) 80 to 270V AC
Warranty	3 Year
Weight	225 g
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	Energy Meter
Dimensions LxWxH	96x96x57 mm
Weight	225 g

Show All Specifications

Product Details

Schneider Electric Power & V,A,F Digital Energy Meters, ELF3234-3 is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Energy Meters. All Schneider Electric Power & V,A,F Digital Energy Meters, ELF3234-3 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric Power & V,A,F Digital Energy Meters, ELF3234-3, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Energy Meters .
