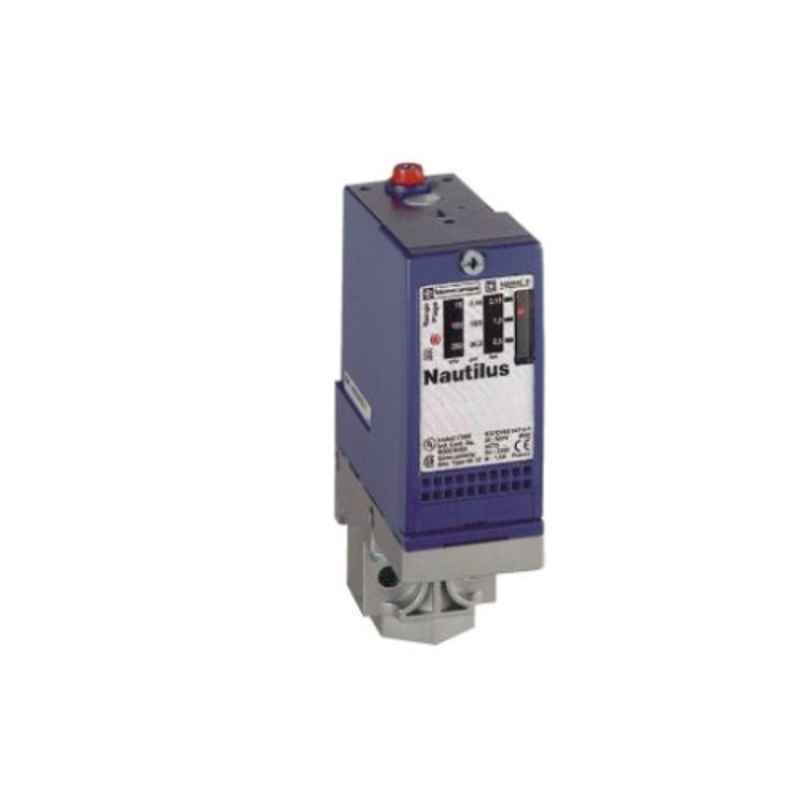

Schneider Electric Nautilus 35bar XMLA Electric Pressure Switch, XMLA035A2S11

Name: Schneider Electric Nautilus 35bar XMLA Electric Pressure Switch, XMLA035A2S11
Brand: Schneider Electric
SKU: MSN85803NG3L92
Price: 8968 INR
Availability: OutOfStock

₹8,968 (Incl. of all taxes)

₹7,593 + ₹1,375 GST

MRP ₹9,436 4% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Schneider Electric
Accuracy	Repeat: 2%
Additional Details	Gauge: 20 - 14 awg
Ambient Temperature	Operation: -25 to 70 deg C Storage: -40 to 70 deg C
Certification	LROS, UL, EAC, CSA, CCC & BV
Dimensions	113x75x35 mm
Item Code	XMLA035A2S11
Material	Contact with Fluid: Brass, Nitrile & Zinc Alloy Enclosure: Zinc Alloy
Model	Nautilus
Operating Rate	IP66 Conforming to EN/IEC 60529
Pressure	35 bar Permissible Accidental: 80 bar Destruction: 160 bar
Rated Current	3 Amp, B300, AC-15 (Ue: 120 V) Conforming to EN/IEC 60947-5-1 1.5 Amp, B300, AC-15 (Ue: 240 V) Conforming to EN/IEC 60947-5-1 0.1 Amp, R300, DC-13 (Ue: 250 V) Conforming to EN/IEC 60947-5-1
Rated Insulation Voltage	300 V Conforming to UL 508 500 V Conforming to EN/IEC 60947-1 300 V Conforming to CSA C22.2 No 14
Shock Resistance	50 gn Conforming to IEC 60068-2-27
Standards	EN/IEC 60947-5-1, CSA C22.2 No 14, CE & UL 508
Vibration Resistance	4 gn Conforming to IEC 60068-2-6
Weight	0.695 kg
short circuit protection	10 Amp Cartridge Fuse Type gG
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Dimensions LxWxH	9.5x8.5x14 cm
Weight	1 kg

Show All Specifications

Product Details

The Schneider Electric Nautilus 35bar XMLA Electric Pressure Switch (model XMLA035A2S11) delivers precise pressure control with a robust capacity of 35 bar and a permissible accidental pressure up to 80 bar. Compact yet durable, it measures 113x75x35 mm and weighs 0.695 kg, supporting wire gauges from 20 to 14 AWG. Designed for demanding environments, it operates reliably between -25Â°C and 70Â°C, with storage tolerance down to -40Â°C. Enhanced with a 10 Amp Cartridge Fuse Type gG for short circuit protection, this switch ensures safety and long-lasting performance in various industrial applications.
