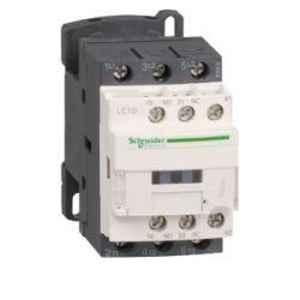

Schneider Electric TeSys Deca 80A 100-250 VDC 1 NO + 1 NC Three PoleThree Pole DC Low Consumption Contactor, LC1D80AKUE

Hover to Zoom

Schneider Electric TeSys Deca 80A 100-250 VDC 1 NO + 1 NC Three PoleThree Pole DC Low Consumption Contactor, LC1D80AKUE

Name: Schneider Electric TeSys Deca 80A 100-250 VDC 1 NO + 1 NC Three PoleThree Pole DC Low Consumption Contactor, LC1D80AKUE
Brand: Schneider Electric
SKU: MSNQ94PNEZZ1K0
Price: 12774 INR
Availability: OutOfStock

₹12,774 (Incl. of all taxes)

₹10,822 ₹1,952 GST

MRP ₹34,335 62% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Wide Control Voltage Range (100-250 V DC) for Flexible Application.
Durable & Compact Three-pole Design Ensures Long-lasting Performance.
Designed for Reliable Switching of DC Circuits with Low Power Consumption.

Product Specifications

Brand	Schneider Electric
Coil Type	DC Operational
Coil Voltage	100 - 250 VAC
Contactor Type	Power Contactors
Dimensions	122x55x120 mm
Frequency	50-60 Hz
Item Code	LC1D80AKUE
Mounting type	Plate & Rail
Number of Contacts	1 NO + 1 NC
Number of Poles	3
Protection Class	IP20
Series	TeSys Deca
Standards	IEC, UL, CSA
Additional Details	Ambient Temperature: upto 60 Deg C 80 Amp AC-1: 80 Amp Single Frequency:25-400 Hz Ambient Temprature: -40 to 60 deg C
Certification	CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping) UKCA
Current	80 Amp
Depth	120 mm
Height	122 mm
Impedance	1.5 mOhm
Mechanical Durability	6 Mcycles
Motor Power	37 kW
Notes	Image is only for refrence purpose
Operating Altitude	0 - 3000 m
Operating Rate	3600 cycle/hr
Power	50 HP
Rated Breaking Capacity	1000 Amp at 440 V for power circuit conforming to IEC 60947
Rated Operational Voltage (Ue)	Power circuit: <= 690 V AC 25 to 400 Hz Power circuit: <= 300 V DC
Switching Current	5 mA
Weight	1.002 kg
Width	55 mm
Country of origin	India
Manufacturer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Packer Details	Schneider Electric India Private Limited C 56, Mayapuri Industrial Area Phase II, New West Delhi Delhi, Delhi 110064 India
Dimensions LxWxH	9.5x8.5x14 cm
Weight	1 kg

Show All Specifications

Product Details

The Schneider Electric TeSys Deca 80A 100-250 VDC 1 NO + 1 NC Three Pole DC Low Consumption Contactor is a high-quality power contactor designed to offer reliable performance in a variety of applications. With a weight of just 1.002 kg, this contactor is lightweight and easy to handle.

Featuring three poles, this contactor provides efficient power distribution and control. The 1 NO + 1 NC configuration offers flexibility and versatility in operation. The contactor is designed for low power consumption, ensuring energy efficiency and cost savings.

This Schneider Electric contactor is built to withstand demanding environments with an ambient temperature rating of up to 60 degrees Celsius. The mounting type for the contactor is plate and rail, allowing for easy installation.

Please note that the product image is for reference purposes only. For more technical details and information, refer to the additional details provided by Schneider Electric. Choose Schneider Electric for reliable and efficient power contactors that meet your needs.
