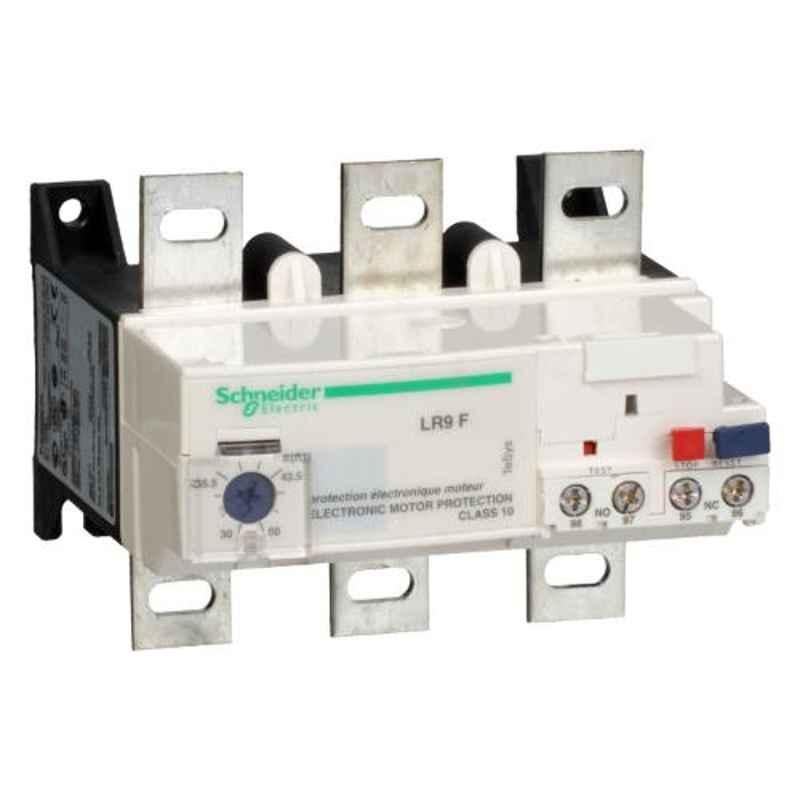

Schneider Electric TeSys LRF 90-150A Class 10A Electronic Thermal Overload Relay, LR9F5369
₹26,999 (Incl. of all taxes)
₹22,880 ₹4,119 GST
About This Product
Key Features
Wide Current Range- Supports 90-150 Amp, Ideal for Heavy-duty Industrial Motors.
Electronic Sensing- Ensures Precise Thermal Monitoring & Consistent Performance.
Class 10 Amp Protection- Provides Fast, Accurate Overload Response for Motor Safety.
Adjustable Settings- Offers Easy Current Adjustment for Different Application Needs.
Reliable Trip Mechanism- Prevents Motor Damage with Dependable Overload & Phase-failure Protection.
Show All Key Features
Product Specifications
Brand | |
Item Code | LR9F5369 |
Ambient Temperature | Operation: -25 to 70 deg C Conforming to IEC 60255-8 Storage: -55 to 80 deg C |
Applications | Motor Protection |
Certification | UL CSA |
Compatibility | LC1F115, LC1F185 |
Degree of Protection | IP20 Front Face Confirming to IEC 60529 IP20 Front Face Confirming to VDE 0106 |
Dimensions | 115x123.5x96 mm |
EAN | 3389110566000 |
Frequency | 50-60 Hz |
Impulse Voltage | IEC 60947-1 8 kV |
Operating Altitude | ≤ 2000 m (Without Derating) |
Protective Treatment | TH |
Series | TeSys LRF |
Standards | VDE 0660 IEC 60255-17 IEC 60947-4-1 IEC 60255-8 EN 60947-4-1 |
Thermal Protection Adjustment Range | 90-150 Amp |
Warranty | 18 Months |
Weight | 0.885 kg |
Country of origin | India |
Manufacturer Details | Schneider Electric DLF Building No 10, 9th Floor, Tower C, DLF Cyber City, Gurgaon - 122002 (Near Phase 2) |
Packer Details | Schneider Electric DLF Building No 10, 9th Floor, Tower C, DLF Cyber City, Gurgaon - 122002 (Near Phase 2) |
Dimensions LxWxH | 8.1x7x11.5 cm |
Weight | 0.51 kg |
Show All Specifications
Product Details
The Schneider Electric TeSys LRF 90-150A Class 10A Electronic Thermal Overload Relay LR9F5369 is a top-of-the-line motor protection solution. With a weight of 0.885 kg and dimensions of 115x123.5x96 mm, this relay is designed for reliable performance in a variety of applications. It features a high degree of protection with IP20 front face confirmation to IEC 60529 and VDE 0106 standards. The relay operates in temperatures ranging from -25 to 70 deg C and offers fire resistance up to 850 deg C. Trust Schneider Electric for quality and durability in your motor protection needs. Designed for advanced motor protection, it provides accurate overload detection and helps prevent damage caused by overheating or phase failure. Its electronic design ensures precise and consistent performance, while the compact structure allows easy installation in control panels. Built with high-quality components, it delivers long service life and dependable operation in demanding industrial environments, ensuring enhanced safety and efficiency.
Browse through the extensive list of Thermal Overload Relay at Moglix. Shop online for other Schneider Electric Thermal Overload Relay. available at Moglix in the lowest price range.
Read More
Frequently Asked Questions
Displaying Questions 2 / 3
Q1:What is the purpose of this overload relay?
Ans:
It protects motors from overheating and overcurrent by automatically disconnecting the circuit when needed.
Q2:What current range does it support?
Ans:
It is suitable for motors in the 90?150A range with Class 10A protection.
