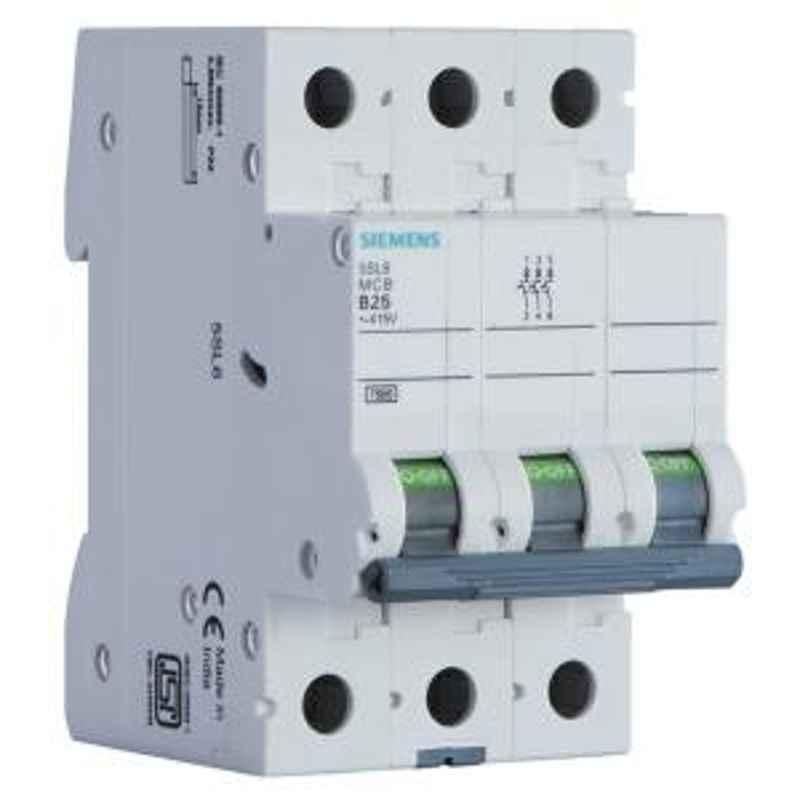

Siemens 25 A Three Pole MCB 5SL63257RC

Name: Siemens 25 A Three Pole MCB 5SL63257RC
Brand: Siemens
SKU: MSNNKQGL8WOV9X
Price: 1358 INR
Availability: OutOfStock

₹1,358 (Incl. of all taxes)

₹1,148 + ₹210 GST

MRP ₹1,712 20% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Highly effective touch protection against accidental contact . Ergonomically designed, with a user friendly lever for effortless switching . MCB with patented unique SLR (Slide Latch-Release) feature for tool free removal from DIN rail. It also allows individual MCBs to be removed from bus mounted assembly . Enables firm mounting of Bus bar together with wire and front access of wires for safer installation . To highlight exact switching position, easily recognizable color coded ON-OFF is embedded on the attractive grey lever.

Product Specifications

Brand	Siemens
Additional Details	Applied Connection Torque: 2-3 Nm Relative Humidity: 0.95
Ambient Temperature	-25°C to +55°C
Breaking Capacity	7.5 kA
Current Rating	25 A
Curve Type	C-Curve
Frequency	50/60 Hz
Insulation Voltage	250/440 V AC
Item Code	5SL63257RC
Modules Width	54 mm
Number of Modules	3
Number of Poles	Three Pole
Protection Class	IP-20
Rated Voltage	415 V
Standards	IS/IEC 60898-1 : 2002
Country of origin	India
Manufacturer Details	Siemens Limited, Birla Aurora, Level 21, Plot No. 1080, Dr. Annie Besant Road, Worli, Mumbai � 400030, India
Packer Details	Siemens Limited, Birla Aurora, Level 21, Plot No. 1080, Dr. Annie Besant Road, Worli, Mumbai � 400030, India
Common/Generic Name	MCB
Dimensions LxWxH	150x150x150 mm
Weight	33 g

Show All Specifications

Product Details

The Siemens 25 A Three Pole MCB 5SL63257RC is a top-quality circuit breaker designed to provide efficient protection to electrical circuits. With its three-pole configuration, it ensures reliable performance and safety. The MCB has a current rating of 25 A, making it suitable for a variety of applications. It also boasts a breaking capacity of 7.5 kA, allowing it to handle high levels of current without any issues. The applied connection torque of 2-3 Nm ensures a secure and stable connection. It can operate flawlessly in a wide temperature range from -25°C to +55°C. With an insulation voltage of 250/440 V AC and a C-Curve curve type, this Siemens MCB is the ideal choice for circuit breakers and fuses.
