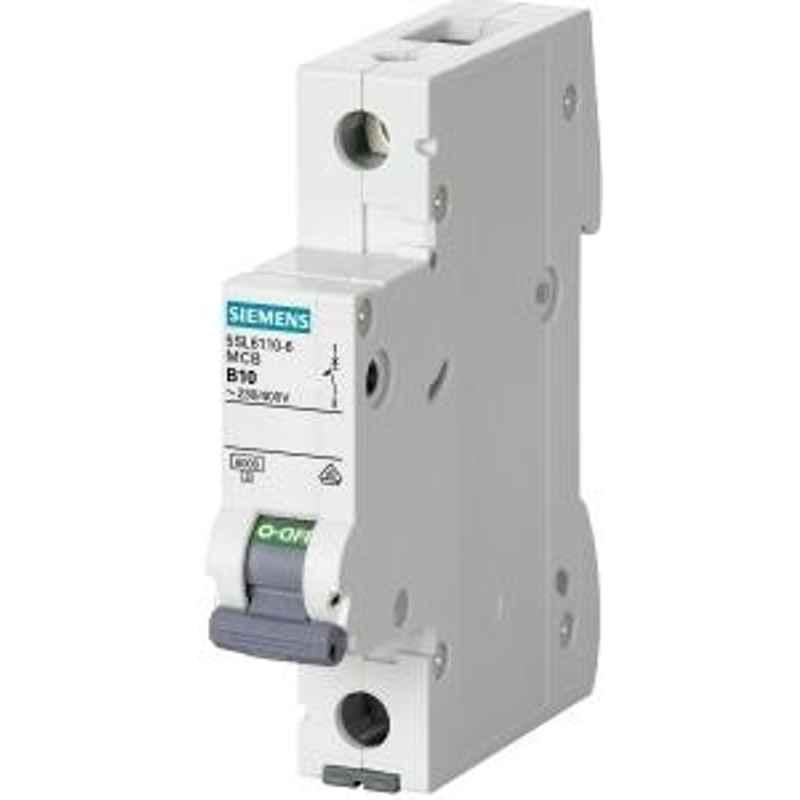

Siemens 5SL61107RC 10 A Single Pole MCB

Name: Siemens 5SL61107RC 10 A Single Pole MCB
Brand: Siemens
SKU: MSN153VL4QPYK3
Price: 1288 INR
Availability: OutOfStock

₹322 (Incl. of all taxes)

₹274 + ₹48 GST

MRP ₹334 3% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Highly effective touch protection against accidental contact . Ergonomically designed, with a user friendly lever for effortless switching . MCB with patented unique SLR (Slide Latch-Release) feature for tool free removal from DIN rail. It also allows individual MCBs to be removed from bus mounted assembly . Enables firm mounting of Bus bar together with wire and front access of wires for safer installation . To highlight exact switching position, easily recognizable color coded ON-OFF is embedded on the attractive grey lever.

Product Specifications

Brand	Siemens
Additional Details	Applied Connection Torque: 2-3 Nm Relative Humidity: 0.95
Ambient Temperature	-25°C to +55°C
Breaking Capacity	7.5 kA
Current Rating	10 Amp
Curve Type	C-Curve
Dimensions	13x70x90 mm
Frequency	50/60 Hz
Insulation Voltage	250/440 V AC
Item Code	5SL61107RC
Modules Width	18 mm
Number of Modules	1
Number of Poles	Single Pole
Protection Class	IP-20
Rated Voltage	240/415 V
Standards	IS/IEC 60898-1 : 2002
Country of origin	India
Manufacturer Details	Siemens Limited, Birla Aurora, Level 21, Plot No. 1080, Dr. Annie Besant Road, Worli, Mumbai � 400030, India
Packer Details	Siemens Limited, Birla Aurora, Level 21, Plot No. 1080, Dr. Annie Besant Road, Worli, Mumbai � 400030, India
Common/Generic Name	MCB
Dimensions LxWxH	13x70x90 mm
Weight	33 g

Show All Specifications

Product Details

The Siemens 5SL61107RC 10 A Single Pole MCB is a reliable circuit breaker designed for efficient protection of electrical circuits. It belongs to the Circuit Breakers \u0026 Fuses category and is part of the renowned Siemens brand. With a Single Pole configuration, a Current Rating of 10 Amp, and a Breaking Capacity of 7.5 kA, it ensures efficient and safe operation. The MCB also offers additional features such as an Applied Connection Torque of 2-3 Nm, compact dimensions of 13x70x90 mm, and an impressive working temperature range of -25°C to +55°C. The Insulation Voltage of 250/440 V AC further enhances its safety features, making it an excellent choice for various applications.
