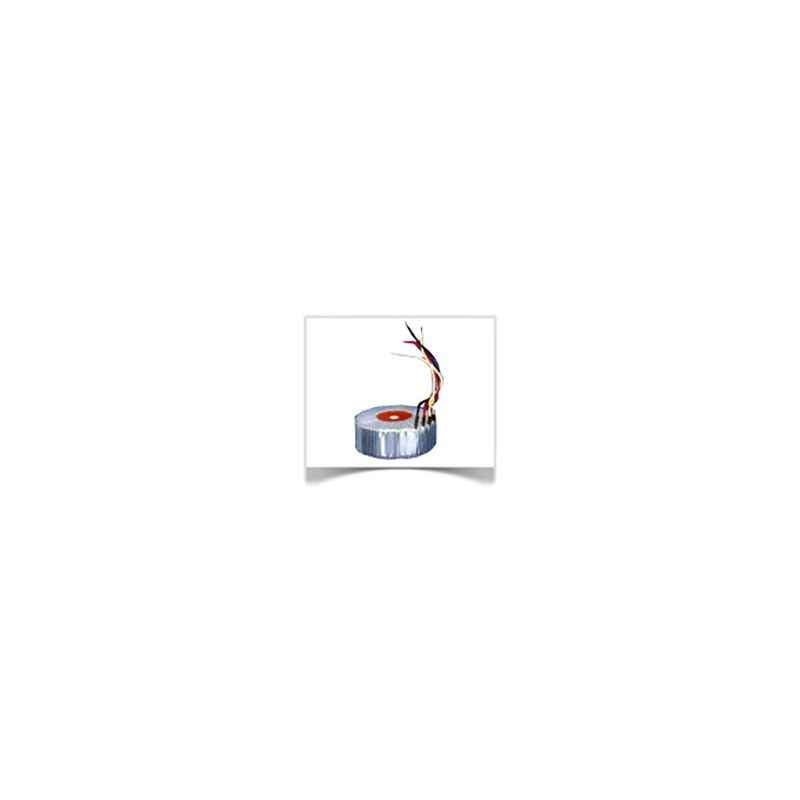

Torotrans Toroidal Power Transformer, Power Rating: 1500 VA

Product Details

A toroidal transformer has ring type core made from cold rolled grain oriented (CRGO) Silicon steel strip without any joints and annealed for stress relief after being wound. These wound cores are then suitably insulated by class B insulation and the winding of copper wire is usually done by winding machines. The core being continuous without any air gap and the path of flux being along the direction of grain orientation gives an opportunity for optimum use of flux density besides very low iron loss and exciting current. The primary and secondary windings are closely linked magnetically. Therefore the leakage fluxes and reactance are negligible. A toroidal transformer has its winding spread over the entire periphery of the core. This results in larger area for dissipating the heat. Till recently all such small low voltage type transformers needs were met almost universally by traditional or conventional El transformers. Now materials are easily available so it has been possible to develop 'LOW VOLTAGE TOROIDAL TRANSFORMER' giving a whole set of advantages and wide range of applications in place of conventional transformers.
