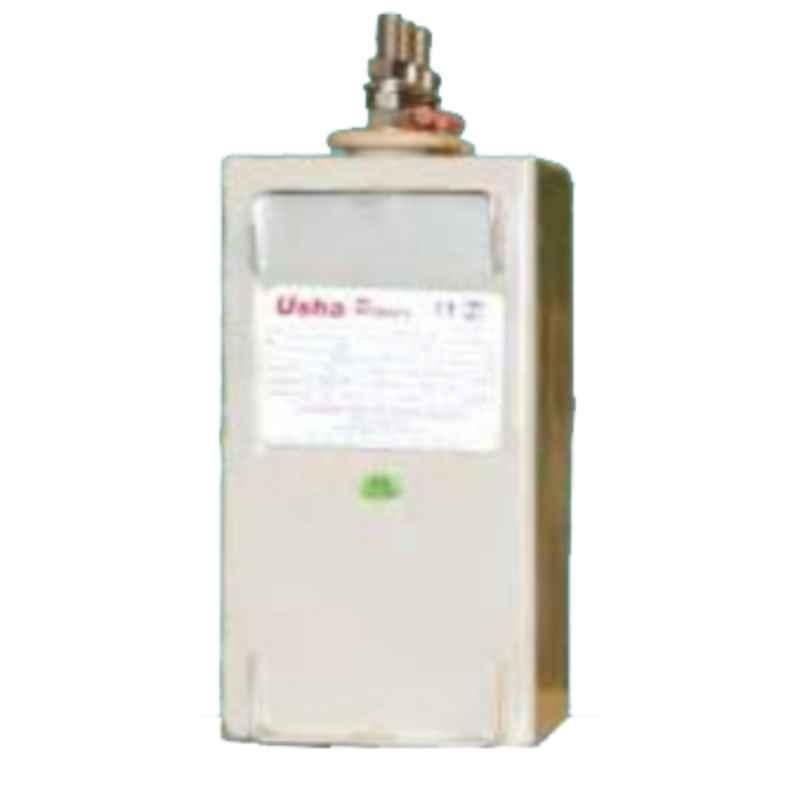

Usha Electric 10kVAr 525V Metalized Polypropylene Square Box Type Capacitor, UEPPLMPP10

Name: Usha Electric 10kVAr 525V Metalized Polypropylene Square Box Type Capacitor, UEPPLMPP10
Brand: Usha Electric
SKU: MSN8580OGQV492
Price: 2931 INR
Availability: OutOfStock

₹2,931 (Incl. of all taxes)

₹2,484 ₹447 GST

MRP ₹4,720 37% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Weather Proof & Powder Coating Design.
Self Healing Capacitors with Low Losses.
Metalized Polypropylene (MPP) Film Design.
Heavy Edge Metalized Multi Layer MPP Film.
Pressure Disconnector to Internal Elements.
Low Losses Due to Advanced Winding & Zinc Spray Equipments.

Show All Key Features

Product Specifications

Brand	Usha Electric
Item Code	UEPPLMPP10
Additional Details	Total Loss: <0.5 W/kVAr Impregnation: Oil Impregnant
Applications	Dynamic PFC System Harmonic Filter System Fixed & Automatic P.F. Correction Inductive Loads, Steel Plant, Textiles, Cement Industries, Building Complexes, APFC Panels & Harmonic Filter Panels
Casing	CRCA Square Box Casing
Dielectric	Loss: <0.2 W/kVAr
Frequency	50 Hz
Kvar Rating	10 kVAr
Notes	Images are for Reference Purpose Only
Operating Humidity Range	0-95%
Protection Class	IP20
Rated Current	6.17-32.5 Amp
Standards	IS 13340/13341/IEC: 60831-1
Temperature Range	-25 to 55 deg C
Tolerance	±5%
Voltage Rating	525 V AC
Warranty	1 Year
Country of origin	India
Manufacturer Details	Usha Electric Power Private Limited, Plot No. 108, Udyog Vihar Extension, Ecotech-II, Greater Noida-201310
Packer Details	Usha Electric Power Private Limited, Plot No. 108, Udyog Vihar Extension, Ecotech-II, Greater Noida-201310
Common/Generic Name	Capacitor
Dimensions LxWxH	25.4x10.16x25.4 cm
Weight	6 kg

Show All Specifications

Product Details

Introducing the Usha Electric 10kVAr 525V Metalized Polypropylene Square Box Type Capacitor, UEPPLMPP10, a high-quality capacitor designed to enhance the performance of Dynamic PFC Systems. This capacitor offers a reliable solution to improve power factor correction in various electrical applications. With an operating humidity range of 0-95%, it can withstand diverse environmental conditions.

Please note that the images provided are for reference purposes only. The Usha Electric 10kVAr capacitor boasts exceptional features, including a total loss of less than 0.5 W/kVAr and a dielectric loss of less than 0.2 W/kVAr, ensuring efficient energy utilization. The tolerance level of this capacitor is ±5%, ensuring accuracy and precision in power factor correction.

Additionally, this capacitor features a sturdy CRCA square box casing, providing durability and protection. Trust Usha Electric, a renowned brand in the industry, to deliver high-performing capacitors that meet your power factor correction needs.

Browse through the extensive list of Capacitors at Moglix. Shop online for other Usha Electric Capacitors. available at Moglix in the lowest price range.
