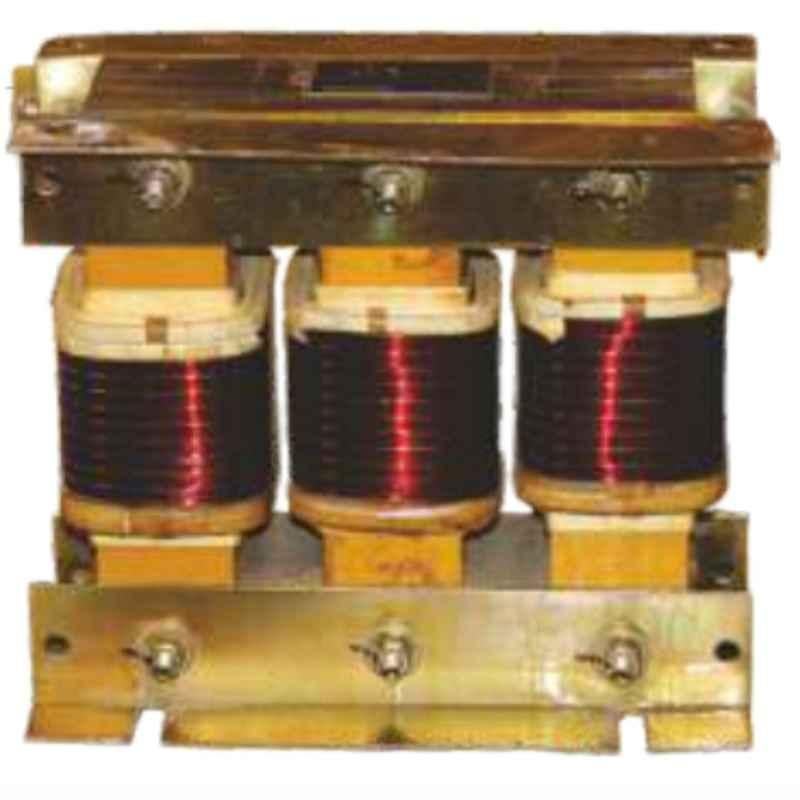

Usha Electric 20kVAr 440V 14% De-Tuned Series Copper Wound Harmonic Reactor, UEPPLCWR20

Name: Usha Electric 20kVAr 440V 14% De-Tuned Series Copper Wound Harmonic Reactor, UEPPLCWR20
Brand: Usha Electric
SKU: MSN153V30YYJK3
Price: 22249 INR
Availability: OutOfStock

MRP ₹22,249 (Incl. of all taxes)

₹18,855 + ₹3,394 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Harmonic Banks & Harmonic Filtration.
Limiting Inrush Current During Switching.
Limiting Resonance & Protection of Capacitor Banks.

Product Specifications

Brand	Usha Electric
Item Code	UEPPLCWR20
Voltage	440 V
Ambient Temperature	Operating Temperature: -10 to 50 deg C Storage Temperature: -10 to 75 deg C
Detuned Factor	14%
Frequency	47-53 Hz
Notes	Images are for Reference Purpose Only
Power Rating	20 kVAr
Warranty	1 Year
Winding Type	Copper
Country of origin	India
Manufacturer Details	Usha Electric Power Private Limited, Plot No. 108, Udyog Vihar Extension, Ecotech-II, Greater Noida-201310
Packer Details	Usha Electric Power Private Limited, Plot No. 108, Udyog Vihar Extension, Ecotech-II, Greater Noida-201310
Common/Generic Name	Harmonic Reactor
Dimensions LxWxH	10x10x10 cm
Weight	0.45 kg

Show All Specifications

Product Details

Introducing the Usha Electric 20kVAr 440V 14% De-Tuned Series Copper Wound Harmonic Reactor, designed specifically to mitigate the harmful effects of harmonics in power systems. Falling under the category of Harmonic Reactors, this product boasts the trusted brand name of Usha Electric. Please note that the images provided are for reference purposes only.

Constructed with high-quality copper windings, this harmonic reactor ensures superior performance and longevity. It operates smoothly within an ambient temperature range of -10 to 50 degrees Celsius, making it suitable for various environments. With a detuned factor of 14%, this reactor effectively reduces the impact of harmonics on the power grid.

Identified by the item code UEPPLCWR20, this harmonic reactor is designed to work efficiently at a voltage of 440V within a frequency range of 47-53 Hz. Upgrade your power system with the Usha Electric 20kVAr 440V 14% De-Tuned Series Copper Wound Harmonic Reactor and experience improved power quality and reduced harmonic distortions.
