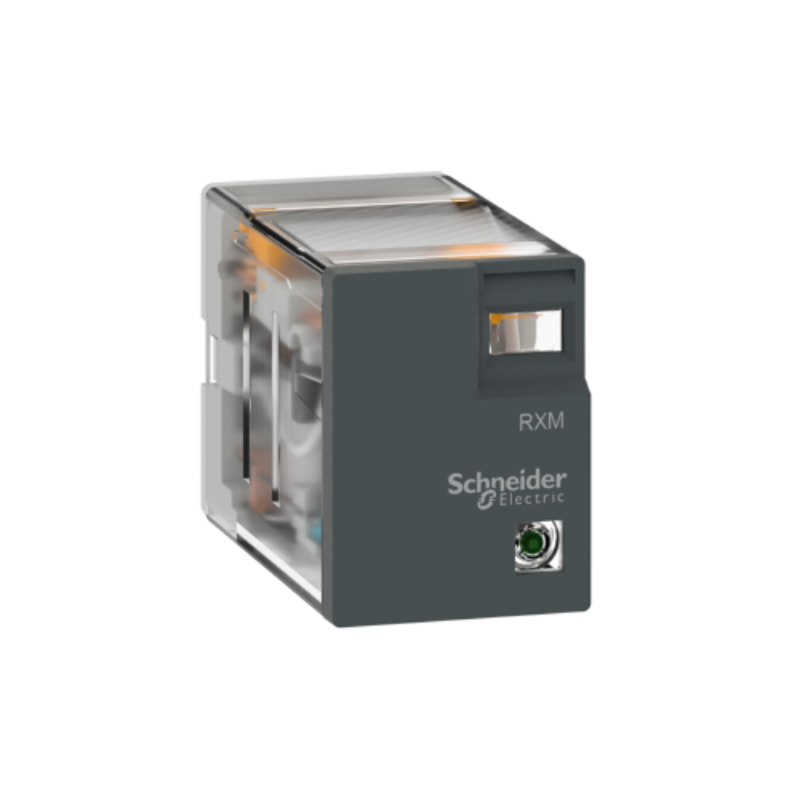

Schneider Electric Harmony 2CO 5A 24VAC Power Relay with LED, RXM2LB2BD (Pack of 10)
₹4,139 (Incl. of all taxes)
₹3,507 + ₹632 GST
MRP ₹5,410 23% OFF
Buy More & Save More
Qty 2
₹4,107 /pc
24% OFF
Qty 3
₹4,092 /pc
24% OFF
Qty 4 - 5
₹4,076 /pc
24% OFF
Qty 6 - 7
₹4,045 /pc
25% OFF
Qty 8+
₹4,014 /pc
25% OFF
Sign Up & Earn 10 Mogli Coins
& save extra money on your next purchase.
Get at
₹3,725
with Coupon & Offers
Extra ₹413.9 OFF
All Coupons & Offers
India’s Leading B2B Online Store
4.7
Avg. Rating
50+ Lac
Orders Delivered
93%
Happy Customers
Cash on Delivery
Genuine Product
Easy Return
Get GST Invoice
Secure Payments
365 Days Help Desk
About This Product
Key Features
Without Coil Interference Suppression.
With Status LED & Without Push-Button.
Operating Position: Any Position.
Reach Free of SVHC, Toxic Heavy Metal Free, Mercury Free & RoHS Exemption Information.
Show All Key Features
Product Specifications
Brand | |
Additional Details | With LED indicator |
Ambient Temperature | Storage: -40 to 85 deg C Operation: -40 to 55 deg C |
Auxillary Contact | 2 CO |
Average Coil Consumption | 0.9 W, DC |
Average Resistance | 630 Ohm Network: DC at 20 deg C 10 % |
Coefficient | Utilisation: 20% |
Control Circuit Voltage | 24 V DC |
Current | Conventional Enclosed Thermal: 5 Amp at -40 to 55 deg C Operational: 5 Amp (AC-1/DC-1) No Conforming to IEC 2.5 Amp (AC-1/DC-1) NC Conforming to IEC Switching: 10 mA |
Current Rating | 5 Amp |
Customer Care Number | 1800 103 0011 |
Depth | 46 mm |
Device Short Name | RXM |
Dielectric Strength | 2000 V AC Between Coil & Contact 2000 V AC Between Poles 1000 V AC Between Contacts |
Drop Out Voltage Threshold | >= 0.1 Uc DC |
Electrical Durability | 100000 Cycles for Resistive Load |
Height | 27 mm |
Impulse Voltage | 3.6 kV During 1.2/50 s Conforming to IEC 61810-7 |
Item Code | RXM2LB2BD |
Load Current | 5 Amp at 250 V AC 5 Amp at 28 V DC |
Material | Silver Alloy (Ag/Ni) |
Mechanical Durability | 10000000 Cycles |
Model | RXM |
Operating Rate | <= 1200 Cycles/hr Under Load <= 18000 Cycles/hr No-Load |
Operating Time | 20 ms Between Coil De-Energisation & Making of the Off-Delay Contact 20 ms Between Coil Energisation & Making of the On-Delay Contact |
Operation | Contact: Standard |
Output Voltage | 24 VAC |
Overall Depth | CAD: 46 mm |
Overall Height | CAD: 27 mm |
Overall Width | CAD: 21 mm |
Protection Category | RT I |
Protection Class | IP40 conforming to EN/IEC 60529 |
Safety Reliability Data | B10d: 100000 |
Series | Harmony |
Shock Resistance | 10 gn for Opening Conforming to EN/IEC 60068-2-27 5 gn for Closing Conforming to EN/IEC 60068-2-27 |
Standards | EN/IEC 61810-1 (iss. 2) CE RoHS compliant |
Switching Capacity | Maximum: 1250 VA AC 140 W DC Minimum: 170 mW |
Test Levels | Level A Group Mounting |
Type | Plug in |
Vibration Resistance | 3 gn, Amplitude: 1 mm (f: 10-50 Hz) Operating Conforming to EN/IEC 60068-2-6,6 gn, Amplitude: 1 mm (f: 10-50 Hz) Not Operating Conforming to EN/IEC 60068-2-6 |
Voltage | Switching: 7-250 V AC/DC Operational: 19.2-26.4 V DC 24 V DC |
Warranty | 1 Year |
Weight | 0.032 kg |
Width | 21 mm |
Country of origin | India |
Manufacturer Details | 79-A, Garhi Main Maeket. East of Kailash, New Delhi -110065 HOUSE NO- A-55, LGF, AMRIT PURI, South Delhi, Delhi, 110065, South Delhi, Delhi-110065, India |
Packer Details | 79-A, Garhi Main Maeket. East of Kailash, New Delhi -110065 HOUSE NO- A-55, LGF, AMRIT PURI, South Delhi, Delhi, 110065, South Delhi, Delhi-110065, India |
Common/Generic Name | Power Relay |
Dimensions LxWxH | 2.0x2.5x4.5 cm |
Weight | 0.033 kg |
Show All Specifications
Product Details
The Schneider Electric Harmony 2CO 5A 24VAC Power Relay (RXM2LB2BD) offers reliable plug-in performance with a compact design measuring 46 mm in depth and 21 mm in width. Designed for versatility, it operates flawlessly in any position and includes 2 CO auxiliary contacts rated at 5 Amps. Featuring a clear status LED for easy monitoring, it excludes coil interference suppression and push-button functions. This relay meets stringent safety standards with RT I protection, is free from SVHC, toxic heavy metals, and mercury, and complies with RoHS exemptions, ensuring an eco-friendly and efficient solution for industrial applications.
Browse through the extensive list of Plug In Relays at Moglix. Shop online for other Schneider Electric Plug In Relays. available at Moglix in the lowest price range.
Read More
Looking to purchase Plug In Relays in bulk?
Purchase item in bulk quantity
Get at best price for your business
By: Schneider Electric
₹519
₹58310% OFF
By: Schneider Electric
₹519
₹58310% OFF
Frequently Asked Questions
Displaying Questions 2 / 5
Q1:What is this relay used for?
Ans:
Ideal for signal switching and interlocking between PLCs and field devices in automation and control panels.
Q2:What is the contact configuration?
Ans:
2CO (2 Changeover) contacts at 5A - provides both NO and NC switching in a single relay for versatile control applications.
