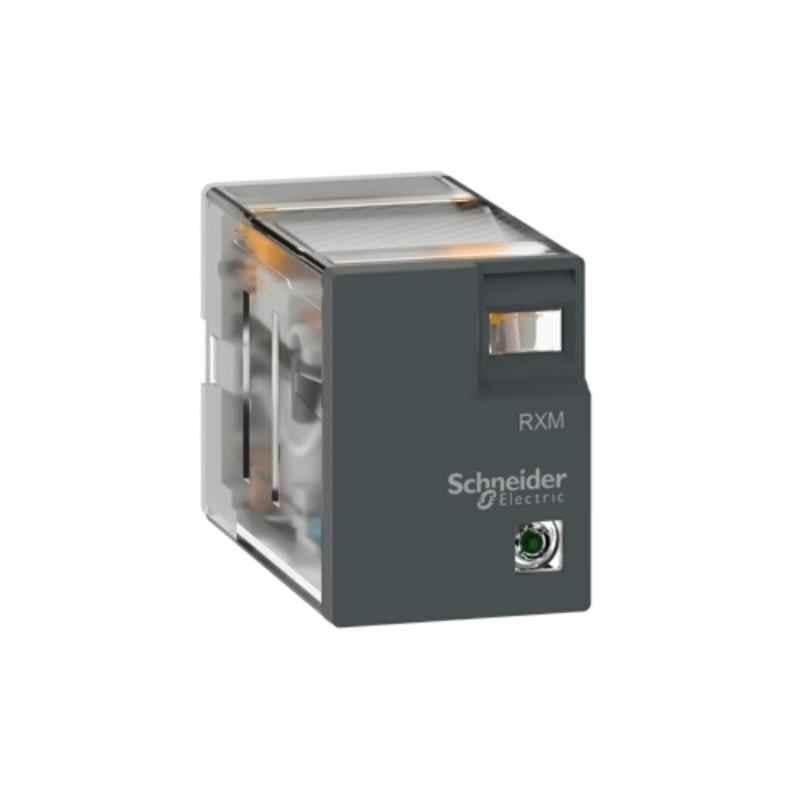

Schneider Electric Harmony 2CO 5A 24VAC Power Relay with LED, RXM2LB2BD
(5 Reviews)
₹469 (Incl. of all taxes)
₹397 ₹72 GST
MRP ₹541 13% OFF
Buy More & Save More
Qty 2
₹465 /pc
14% OFF
Qty 3
₹463 /pc
14% OFF
Qty 4 - 5
₹461 /pc
14% OFF
Qty 6 - 7
₹458 /pc
15% OFF
Qty 8+
₹454 /pc
16% OFF
Sign Up & Earn 10 Mogli Coins
& save extra money on your next purchase.
Get Best Offers & Coupons
for Your Purchase
All Coupons & Offers
India’s Leading B2B Online Store
4.7
Avg. Rating
50+ Lac
Orders Delivered
93%
Happy Customers
Cash on Delivery
Genuine Product
Easy Return
Get GST Invoice
Secure Payments
365 Days Help Desk
Moglix Insights
About This Product
Key Features
Without Coil Interference Suppression.
With Status LED & Without Push-Button.
Operating Position: Any Position.
Reach Free of SVHC, Toxic Heavy Metal Free, Mercury Free & RoHS Exemption Information.
Show All Key Features
Product Specifications
Brand | |
Additional Details | With LED indicator |
Ambient Temperature | Storage: -40 to 85 deg C Operation: -40 to 55 deg C |
Auxillary Contact | 2 CO |
Average Coil Consumption | 0.9 W, DC |
Average Resistance | 630 Ohm Network: DC at 20 deg C ±10 % |
Coefficient | Utilisation: 20% |
Control Circuit Voltage | 24 V DC |
Current | Conventional Enclosed Thermal: 5 Amp at -40 to 55 deg C Operational: 5 Amp (AC-1/DC-1) No Conforming to IEC 2.5 Amp (AC-1/DC-1) NC Conforming to IEC Switching: 10 mA |
Current Rating | 5 Amp |
Customer Care Number | 1800 103 0011 |
Depth | 46 mm |
Device Short Name | RXM |
Dielectric Strength | 2000 V AC Between Coil & Contact 2000 V AC Between Poles 1000 V AC Between Contacts |
Drop Out Voltage Threshold | >= 0.1 Uc DC |
Electrical Durability | 100000 Cycles for Resistive Load |
Height | 27 mm |
Impulse Voltage | 3.6 kV During 1.2/50 µs Conforming to IEC 61810-7 |
Item Code | RXM2LB2BD |
Load Current | 5 Amp at 250 V AC 5 Amp at 28 V DC |
Material | Silver Alloy (Ag/Ni) |
Mechanical Durability | 10000000 Cycles |
Model | RXM |
Operating Rate | <= 1200 Cycles/hr Under Load <= 18000 Cycles/hr No-Load |
Operating Time | 20 ms Between Coil De-Energisation & Making of the Off-Delay Contact 20 ms Between Coil Energisation & Making of the On-Delay Contact |
Operation | Contact: Standard |
Output Voltage | 24 VAC |
Overall Depth | CAD: 46 mm |
Overall Height | CAD: 27 mm |
Overall Width | CAD: 21 mm |
Protection Category | RT I |
Protection Class | IP40 conforming to EN/IEC 60529 |
Safety Reliability Data | B10d: 100000 |
Series | Harmony |
Shock Resistance | 10 gn for Opening Conforming to EN/IEC 60068-2-27 5 gn for Closing Conforming to EN/IEC 60068-2-27 |
Standards | EN/IEC 61810-1 (iss. 2) CE RoHS compliant |
Switching Capacity | Maximum: 1250 VA AC 140 W DC Minimum: 170 mW |
Test Levels | Level A Group Mounting |
Type | Plug in |
Vibration Resistance | 3 gn, Amplitude: ±1 mm (f: 10-50 Hz) Operating Conforming to EN/IEC 60068-2-6 6 gn, Amplitude: ±1 mm (f: 10-50 Hz) Not Operating Conforming to EN/IEC 60068-2-6 |
Voltage | Switching: 7-250 V AC/DC Operational: 19.2-26.4 V DC 24 V DC |
Warranty | 1 Year |
Weight | 0.032 kg |
Width | 21 mm |
Country of origin | India |
Manufacturer Details | Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India. |
Packer Details | Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India. |
Common/Generic Name | Miniature Plug-In Relay |
Weight | 32 g |
Show All Specifications
Product Details
The Schneider Electric Zelio RXM2L 2 C/O 24 VDC 5A Miniature Plug-In Relay with LED is a reliable and easy-to-use relay that is perfect for a wide range of applications. With its LED indicator, it is easy to see when the relay is energized, and its compact size makes it easy to install in a wide variety of. Zelio Plug In Relays are Schneider's top of the line products when it comes to electrical management. These relays are made with silver alloy and have a 1 year warranty. They are perfect for regulating and managing any electrical system. The 0.032 kg plug in relay is a lightweight and compact device perfect for use in portable applications or wherever a small and lightweight relay is needed.
Browse through the extensive list of Plug In Relays at Moglix. Shop online for other Schneider Electric Plug In Relays. available at Moglix in the lowest price range.
Read More
Product Specification Document
Looking to purchase Plug In Relays in bulk?
Purchase item in bulk quantity
Get at best price for your business
Schneider Electric Harmony 2CO 5A 24VAC Power Relay with LED, RXM2LB2BD
Verified Purchase
Dinu
August 2, 2022
Very pleased with my purchase of the schneider plug in relays
This product is very reliable and easy to install.
Verified Purchase
Jignesh
May 14, 2022
I trust schneider electric with my homes electrical needs
Schneiders zelio relay is a great product. it is very user friendly and has a lot of great features. i would definitely recommend it to anyone looking for a good relay.
