What signalling components are included?

The combo includes clear, red and green pilot lights.

Does the set include an emergency-stop component?

Yes. An XB7NS8444 emergency-stop component is included.

Why are multiple pilot-light colours included?

They provide different visual status indications according to the control-panel design.

What is the timing relay rating?

The timing relay is rated at 8A with 1 changeover contact.

What supply voltage does it support?

It supports a 24?240V AC supply range.

What timing function is provided?

The relay provides an on-delay timing function.

Which pilot lights are included?

The combo includes clear, red and green pilot lights.

Does the combo include an emergency stop?

Yes, the listed combination includes an emergency-stop push button.

Home
Electricals
Industrial Switches & Controls

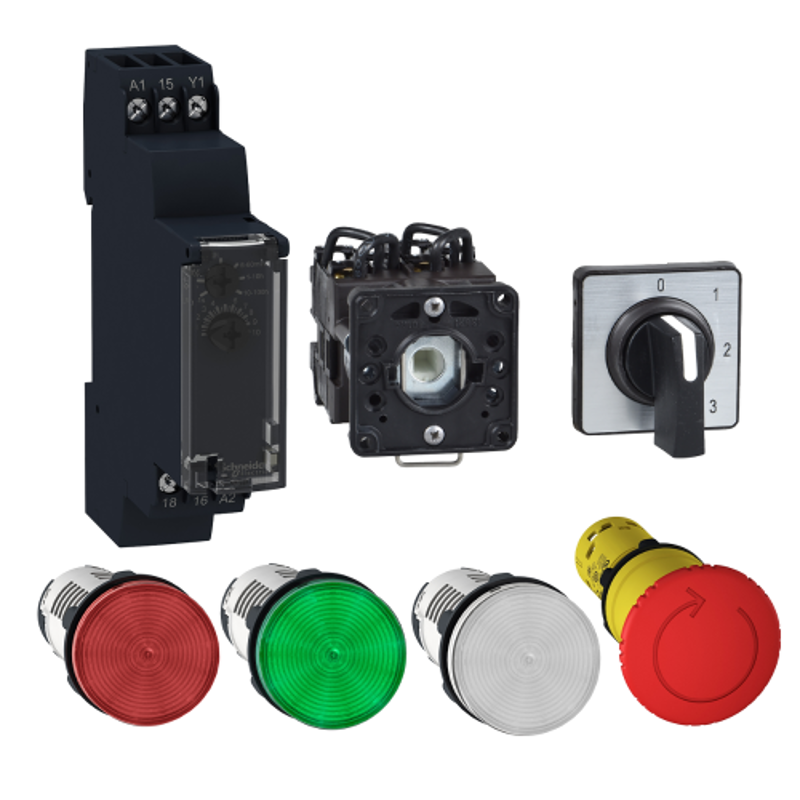

Schneider Electric RE17RAMU 8A 24-240V Timing Relay Combo with Emergency Stop (XB7NS8444), Pilot Light Clear (XB7EV07MP), Pilot Light Red (XB7EV04MP) & Pilot Light Green (XB7EV03MP)

Schneider Electric RE17RAMU 8A 24-240V Timing Relay Combo with Emergency Stop (XB7NS8444), Pilot Light Clear (XB7EV07MP), Pilot Light Red (XB7EV04MP) & Pilot Light Green (XB7EV03MP)

Hover to Zoom

Schneider Electric RE17RAMU 8A 24-240V Timing Relay Combo with Emergency Stop (XB7NS8444), Pilot Light Clear (XB7EV07MP), Pilot Light Red (XB7EV04MP) & Pilot Light Green (XB7EV03MP)

Name: Schneider Electric RE17RAMU 8A 24-240V Timing Relay Combo with Emergency Stop (XB7NS8444), Pilot Light Clear (XB7EV07MP), Pilot Light Red (XB7EV04MP) & Pilot Light Green (XB7EV03MP)
Brand: Schneider Electric
SKU: MSNO5WLXRWZR91
Price: 7489 INR
Availability: InStock
Rating: 5 (6 reviews)

5.0

(6 Reviews)

₹7,489 (Incl. of all taxes)

₹6,346 + ₹1,143 GST

MRP ₹10,474 28% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹7,389

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Cash on Delivery

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

About This Product

Key Features

8A Timing Relay- RE17RAMU Timing Relay Provides Time-Based Switching for Compatible Control Applications.
24-240V AC- Wide Voltage Range Supports Flexible Use In Suitable AC Control Circuits.
Emergency Stop- XB7NS8444 Emergency Stop Provides A Dedicated Operator Safety Control.
Multi-Colour Pilot Lights- Includes Clear, Red and Green Pilot Lights for Visual Status Indication.
Complete Control Combo- Combines Timing, Emergency Stop and Status Indication Components.

Show All Key Features

Product Specifications

Brand	Schneider Electric
Breaking Capacity	Timing Relay: 2000 VA
Certification	GOST & CCC
Colour	Pilot Light: Clear, Red & Green
Composition	Emergency Stop: 2 NC
Current	Pilot Light: 16-20 mA Timing Relay: 8 Amp
Frequency	50-60 Hz
Model	Timing Relay: RE17RAMU Emergency Stop: XB7NS8444 Pilot Light Clear: XB7EV07MP Pilot Light Red: XB7EV04MP Pilot Light Green: XB7EV03MP
Mounting Diameter	Pilot Light: 22 mm Emergency Stop: 22 mm
Package Contents	1 Pc Timing Relay, 1 Pc Emergency Stop & 3 Pcs Pilot Light
Rated Voltage	Pilot Light: 230-240 V Timing Relay: 24-240 V AC
Standards	IEC 60204-1, UL 508, ISO 13850, IEC 60947-5-1, IEC 60947-1, IEC 60947-5-5, IEC 60364-5-53 & CSA C22.2 No 14
Country of origin	India
Manufacturer Details	Schneider Electric, C 56, Mayapuri Industrial Area Phase II, New West Delhi, Delhi, 110064, India
Packer Details	Prakash Tradelinks, Ground Floor, Door No. L-04, Kssidc Industrial Area, Ballari, Karnataka-583201, India
Common/Generic Name	Electrical Combo
Dimensions LxWxH	10x15x17 cm
Weight	1 kg

Show All Specifications

Product Details

The Schneider Electric RE17RAMU Timing Relay Combo features a robust 8A, 24-240V timing relay with a breaking capacity of 2000 VA, ensuring reliable performance in industrial applications. This set includes an emergency stop button (model XB7NS8444) with 2 NC contacts and pilot lights in clear (XB7EV07MP), red (XB7EV04MP), and green (XB7EV03MP), all designed with a 22 mm mounting diameter for seamless integration. Compliant with IEC, UL, ISO, and CSA standards, and certified by GOST and CCC, this combo guarantees safety, durability, and precision in various control systems. Perfect for demanding industrial environments.
